Leonard Valves TM-600-LF Leonard Valve LF Single Drench Shower Valve

Product Description

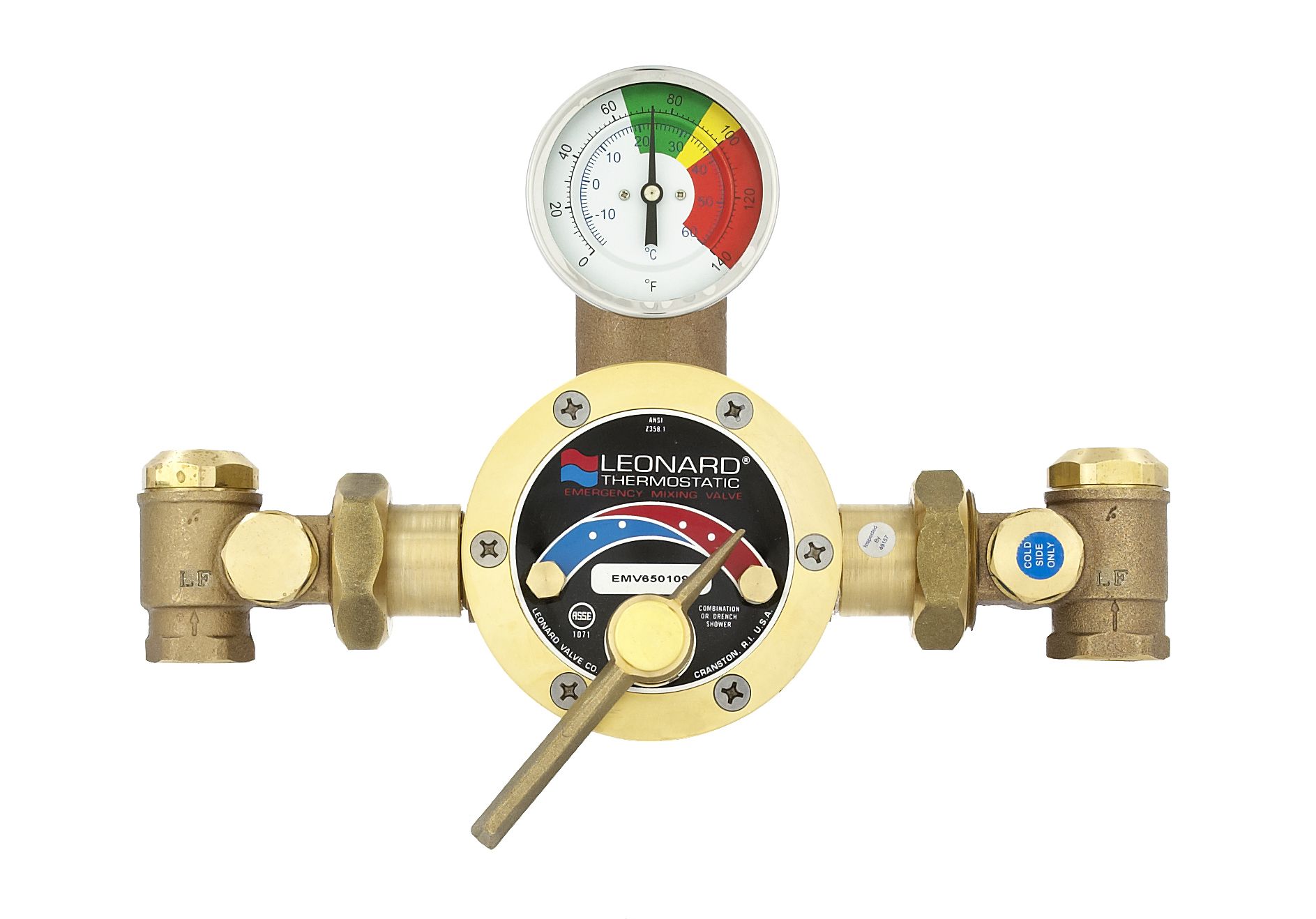

The Leonard Valves TM-600-LF is a thermostatic mixing valve designed for controlling the temperature of water in applications like showers. It features a solid bimetal thermostat that manages the balance of hot and cold water inflow. This valve compensates for fluctuations in supply temperature and pressure, providing a consistent output.

• Highly responsive to temperature changes
• Locking regulator set for 85°F to prevent accidental adjustments
• Meets Low Lead requirements with less than 0.25% lead by weight

Product Highlights

Use this valve in plumbing systems for better control over water temperatures, ensuring safety and comfort in various settings.

Product Information

Standard Information

• Brand: Leonard Valves
• Part Number: TM-600-LF

Technical Specifications

• Category: Thermostatic mixing valve
• Inlet Connection: 3/4 inches
• Outlet Connection: 1 inch
• Max Flow: 58 GPM
• Overall Dimensions: 15 inches W x 9 inches D
• Minimum Flow: 3 GPM
