LEONARD VALVE TM-26-LF-RF Megatron TM-26-LF (1.0 - 26 GPM)

Product Description

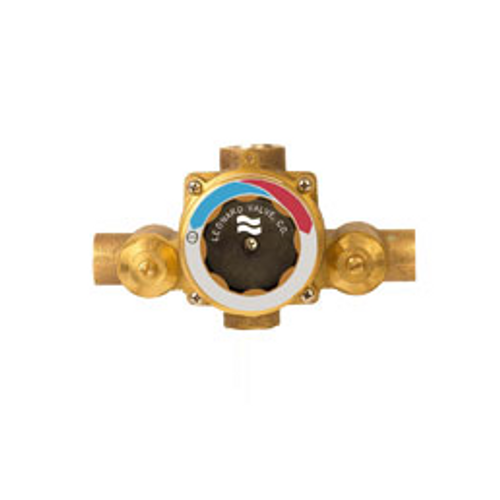

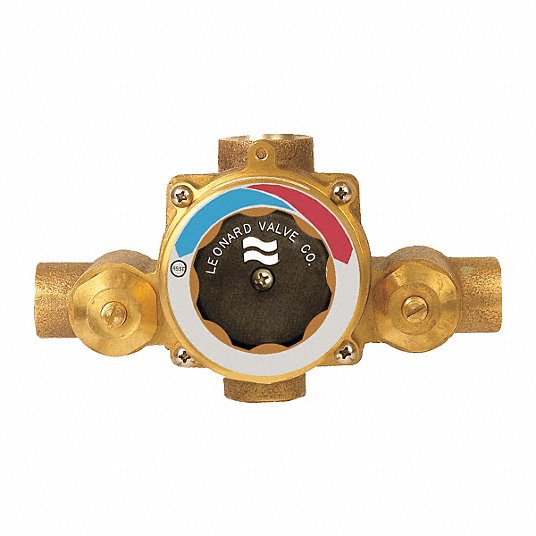

The LEONARD VALVE TM-26-LF-RF Megatron TM-26-LF is a water temperature control system capable of managing flow rates from 1.0 to 26 GPM. The unit includes a thermostatic water mixing valve featuring a DURA-trol solid bimetal thermostat, ensuring reliable temperature regulation. An adjustable high-temperature limit stop is set at 120 degrees Fahrenheit. This product is factory pre-assembled and undergoes thorough testing for quality assurance.

• Complete water temperature control station
• Thermostatic valve with DURA-trol solid bimetal thermostat
• Adjustable high-temperature limit stop at 120 degrees Fahrenheit

Product Highlights

Product Information

Standard Information

• Body Material: Brass; Bronze
• Seal Material: NBR

Technical Specifications

• Inlets: three-quarters inch
• Maximum Flow: 26.0 GPM
• Minimum Flow: 1.0 GPM
• Outlet: three-quarters inch
• Overall Depth: 10 inches
• Overall Height: 47 inches
• Overall Width: 32 inches
• Connection Type: Sweat x Sweat
• Inlet Connection Size: three-quarters inch
• Outlet Connection Size: three-quarters inch
• Max. Operating Pressure: 125 psi
• Inlet (Cold) Temperature Range: 40 degrees Fahrenheit to 85 degrees Fahrenheit
• Inlet (Hot) Temperature Range: 120 degrees Fahrenheit to 200 degrees Fahrenheit
• Outlet Temperature Range: 90 degrees Fahrenheit to 135 degrees Fahrenheit
• Valve Type: Thermostatic
• Includes: Check-stops, Wall Support
• Temperature Gauge: Not Included
• Standards: ASSE 1017
• Manufacturer Part Number: TM-26-LF-RF
• Model/Series: TM
