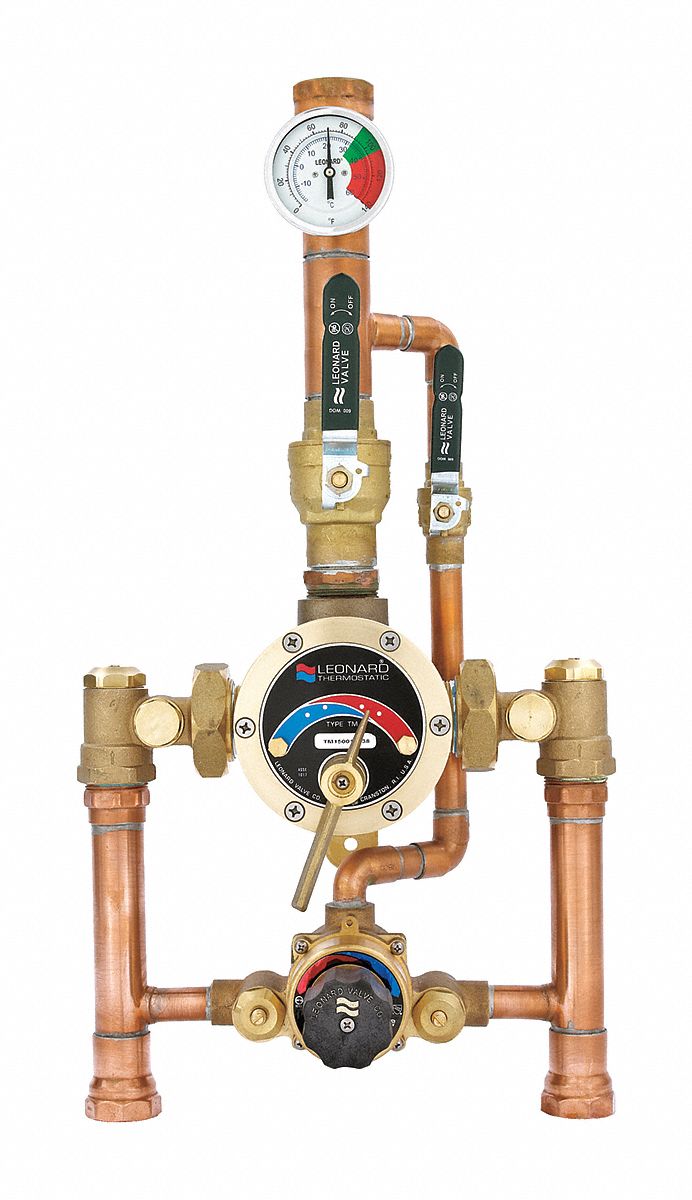

LEONARD VALVE TM-1520B-LF-DT High Low Assembly

Product Description

The LEONARD VALVE TM-1520B-LF-DT is a thermostatic water mixing valve assembly designed for large applications. It includes a small TYPE TM valve along with a DURA-trol solid bi-metal thermostat. The device offers color-coded dials for easy operation and features locking temperature regulator handles. It is factory assembled and tested to ensure quality and reliability. The adjustable limit stops are set for one hundred twenty degrees Fahrenheit. The assembly also has integral hot and cold supply checkstops and outlet ball valve shutoffs.

• Factory assembled and tested
• DURA-trol solid bi-metal thermostat
• Compliant with ASSE 1017 standards

Product Highlights

This valve is specifically for domestic hot water applications, ensuring safe and consistent temperature control.

Product Information

Standard Information

• Brand: LEONARD
• MPN: TM-1520B-LF-DT

Technical Specifications

• Inlets: 1 1/4 inches
• Maximum Flow: 165 GPM
• Minimum Flow: 1 GPM
• Outlet: 1 1/2 inches
• Overall Depth: 8 inches
• Overall Height: 25 inches
• Overall Width: 15 inches
• Body Material: Lead Free bronze
• Inlet Type: NPT
• Outlet Type: NPT
• Temp. Range: 60 degrees to 200 degrees F
• Max. Pressure: 125 psi
• Inlet Temperature (Cold): 40 degrees to 85 degrees F
• Inlet Temperature (Hot): 120 degrees to 200 degrees F
• Includes: Check Stop, Wall Support
• Compliance: Lead Free
• Valve Application: Tempered Domestic Potable Water
• Valve Connection: FPT x Sweat
• Limit Stop: 120
• Point-of-Source Certified: Yes
