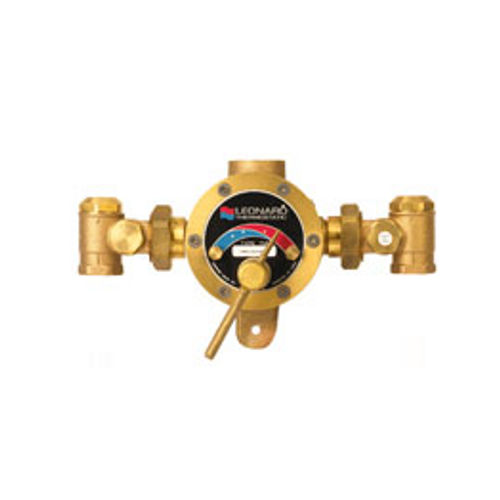

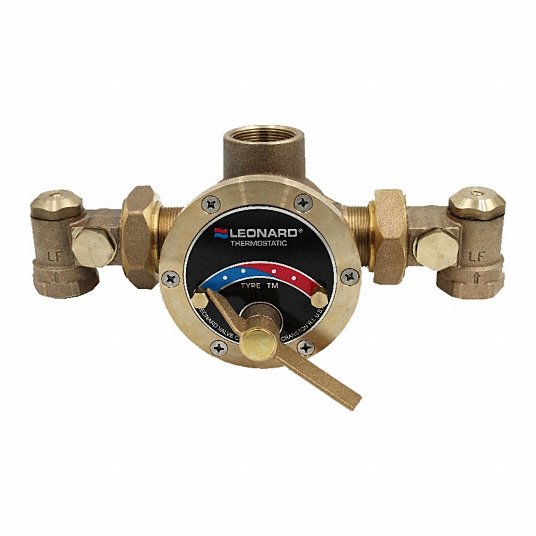

Leonard Valve TM-150-AT-LF-RF Type TM Valve 1 1/4 in Inlet

Product Description

The Leonard Valve TM-150-AT-LF-RF is a thermostatic water mixing valve designed for efficient control of water temperature. The valve features a DURA-trol solid bimetal thermostat that regulates the flow of hot and cold water while adapting to variations in supply temperature and pressure. The body is constructed from durable bronze and brass materials, ensuring longevity and structural integrity.

• Includes integral wall support and combination checkstops
• Maximum operating pressure is 125 PSI
• Lead free compliant for safety and health standards

Product Highlights

This valve is ideal for mixing water in various applications, ensuring consistent temperature control.

Product Information

Standard Information

• Brand: Leonard Valve
• MPN: TM-150-AT-LF-RF

Technical Specifications

• Inlets: 1 1/4 inches
• Maximum Flow: 140 GPM
• Minimum Flow: 18 GPM
• Outlet: 1 1/2 inches
• Connection Type: NPT
• Body Material: Bronze
• Max Operating Pressure: 125 PSI
• Inlet Temperature Range (Cold): 40 °F to 70 °F
• Inlet Temperature Range (Hot): 120 °F to 200 °F
• Outlet Temperature Range: 65 °F to 180 °F
• Overall Height: 8 inches
• Overall Width: 12 inches
• Valve Type: Thermostatic
• Includes: Check-stops
• Valve Size: 1 1/4 inches
• Piping Configuration: 3-Way
• Valve Application: Hot Water
