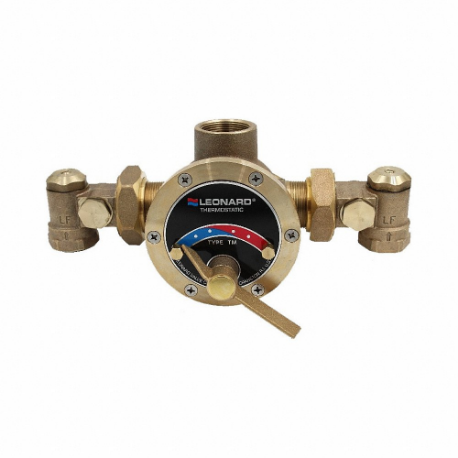

Leonard Valve TM-150-AT-LF-CP Thermostatic Mixing Valve

Product Description

The Leonard Valve TM-150-AT-LF-CP is a thermostatic mixing valve designed for reliable temperature control. This valve utilizes a DURA-trol solid bimetal thermostat for effective management of hot and cold water intake. It adjusts automatically to changes in water supply temperature or pressure, ensuring consistent performance.

• DURA-trol solid bimetal thermostat for accurate temperature regulation.
• Includes integral wall support and combination checkstops for enhanced durability.
• Constructed with bronze, brass, and stainless steel for longevity.

Product Highlights

This mixing valve is suitable for various process temperature control applications, providing essential temperature stability.

Product Information

Standard Information

• Brand: Leonard Valve
• MPN: TM-150-AT-LF-CP

Technical Specifications

• Inlet Size: 1 1/4 inches
• Outlet Size: 1 1/2 inches
• Minimum Flow (GPM): 18
• Maximum Flow (GPM): 140
• Maximum Operating Pressure: 125 PSI (860 KPA)
• Body Material: Brass, Bronze, Stainless Steel
• Operating Temperature Range: +42°F to +200°F
• Cold Inlet Temperature Range: 40°F to 70°F
• Hot Inlet Temperature Range: 120°F to 200°F
• Outlet Temperature Range: 65°F to 180°F
• Finish: Chrome
• Overall Height: 8 inches
