Leonard Valve TA-300-LF Emergency Water Mixing Valve

Product Description

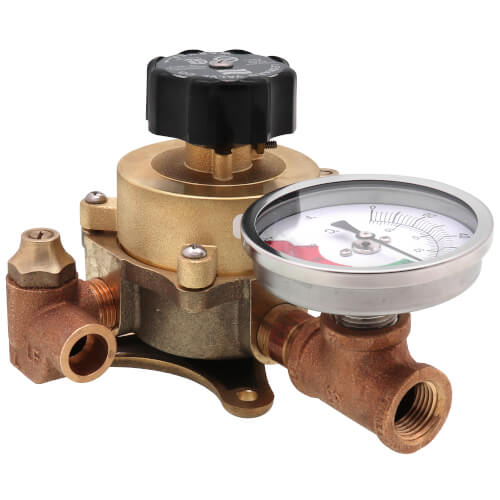

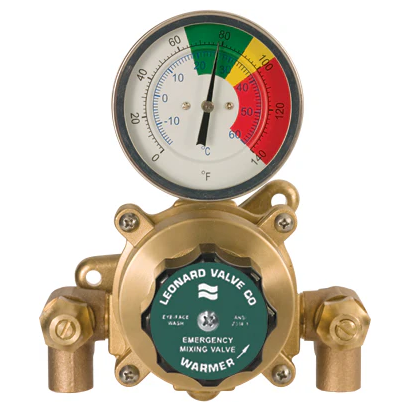

The Leonard Valve TA-300-LF is a thermostatic mixing valve designed for emergency eye and face wash units. This valve uses a DURA-trol solid bimetal thermostat to balance hot and cold water intake, helping to manage temperature and pressure changes efficiently. It features a locking temperature regulator set at eighty-five degrees Fahrenheit and an adjustable high-temperature limit stop set at ninety degrees Fahrenheit.

• Closes on the failure of cold water supply.
• Includes an internal cold water bypass with a capacity of four GPM at thirty PSI if hot water fails.

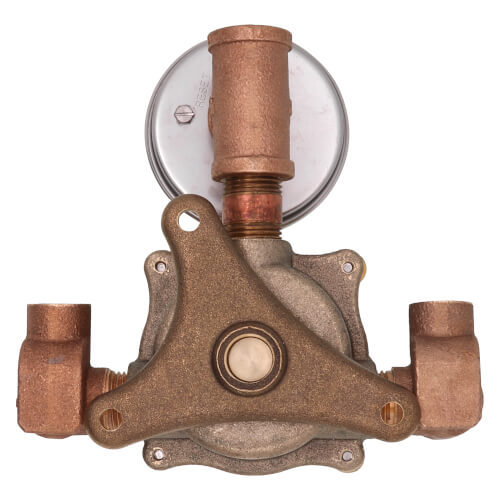

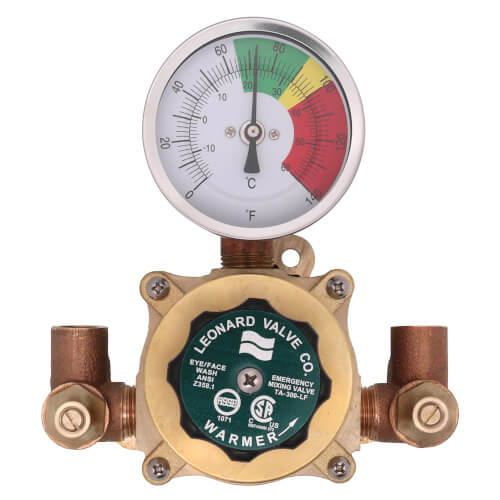

• Built with integral wall support and a dial thermometer.

Product Highlights

This valve is crucial for maintaining safe water temperatures in emergencies. It ensures compliance with safety standards for emergency fixtures.

Product Information

Standard Information

• Brand: Leonard Valve
• MPN: TA-300-LF

Technical Specifications

• Application: Point of Use
• Valve Application: Tempered Water for Emergency Fixtures
• Inlet Size: 1/2 inches
• Outlet Size: 1/2 inches
• Connection Method: Sweat, Threaded
• Connection Type: C x FNPT
• Minimum Flow: 2 GPM
• Maximum Flow: 10 GPM
• Max Pressure: 125 psi
• Material: Bronze
• Body Material: Bronze
• Valve Connection: FPT
• Set Temperature: 85 degrees Fahrenheit
• Limit Stop: 90 degrees Fahrenheit

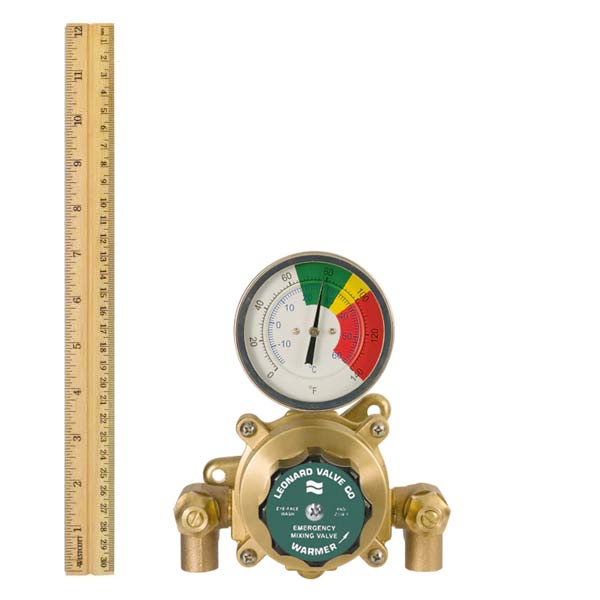

• Overall Depth: 5 inches
• Overall Height: 7 inches
• Overall Width: 7 inches
• Standards Met: ASSE 1071
• Lead Free: Yes
• Weight: 10.00 lbs
