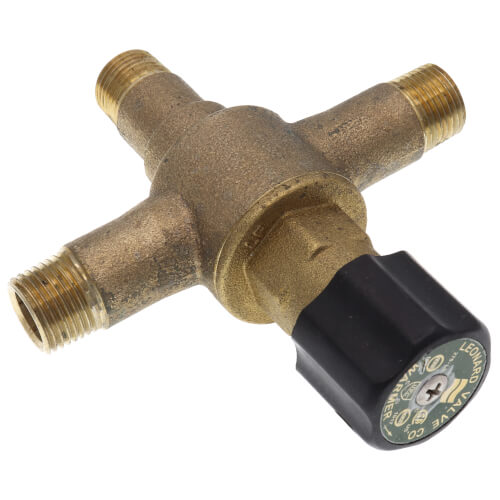

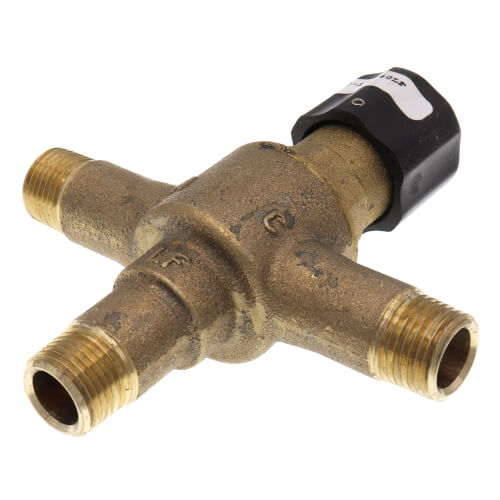

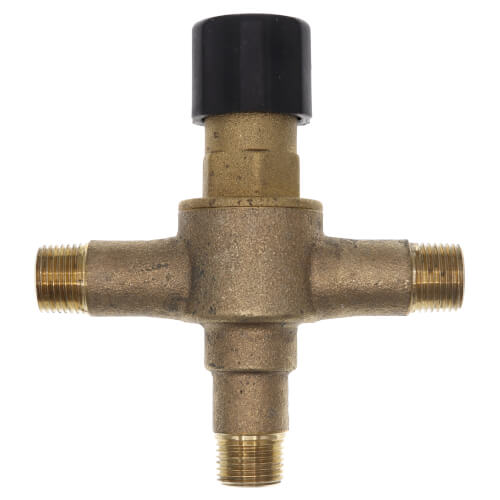

Leonard Valve MODEL270-LF Exposed Thermostatic Mixing Valve 1/2 inches

Product Description

The Leonard Valve MODEL270-LF is a thermostatic mixing valve designed for water tempering in domestic hot water systems. It effectively manages temperature and pressure changes to maintain optimal water temperature. The valve can handle a flow range from zero point twenty-five gallons per minute to twelve gallons per minute, ensuring precise mixing for various applications.

• Lead Free bronze body
• Locked temperature adjustment cap for added security
• Integral check valves on both hot and cold inlets

Product Highlights

The Leonard Valve MODEL270-LF enhances safety and efficiency in hot water management.

Product Information

Standard Information

• Size: 1/2 inches
• Application: Point of Use

Technical Specifications

• Standards Met: ASSE 1070
• Min Flow: 0.25 GPM
• Max Flow: 12 GPM
• Body Pattern: 3-Way
• Valve Action: Mixing
• Connection Type: MPT x FPT
• Connection Method: Threaded
• Material: Bronze
• Lead Free: Yes
• Max Pressure: 125 psi
• Inlets: 1/2 inches
• Outlet: 1/2 inches
• Overall Depth: 8 inches
• Overall Height: 34 inches
• Overall Width: 28 inches
• Connection Size: 1/2 inches
• Flow Rate: 0.25 - 12 GPM
• Pressure Rating: 125 psi
• Temperature Rating: 90 - 140 degrees F
• Type: Wax
