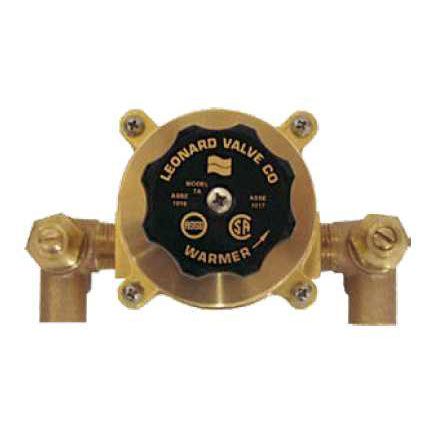

Leonard TA-LF-F Thermostatic Mix Valve Bi-Metal Coil 1/2 inches

Product Description

The Leonard TA-LF-F thermostatic mixing valve features 1/2" sweat angle checktops and a 0.5 GPM minimum flow capacity. Designed for critical line control and process applications, it has a maximum operating pressure of 125 psi and an adjustable high temperature limit stop set for 110°F. The DURA-trol solid bimetal thermostat directly links to the valve's porting to control water intake.

• Thermostatic mixing valve
• DURA-trol solid bimetal thermostat
• Adjustable high temperature limit stop set for 110°F

Product Highlights

This Leonard thermostatic mixing valve is ideal for maintaining consistent water temperature in critical applications, featuring a durable design and precise temperature control.

Product Information

Standard Information

• Brand: LEONARD
• Manufacturer Part Number: TA-LF-F
• Country of Origin: US

Technical Specifications

• Brand: Leonard
• MPN: TA-LF-F
• Valve Size: 1/2"
• Valve Connection: Sweat
• Piping Configuration: Angle
• Body Material: Bronze
• Valve Application: Hot Water
• Max Pressure: 125 psi WSP
• Inlets: 1/2"
• Maximum Flow(GPM): 9
• Minimum Flow(GPM): 0.5 GPM
• Outlet: 1/2"
• Overall Depth: 3.5"
• Overall Height: 5"
• Overall Width: 7"
• Suitable Media: Water
• Valve Operation: Manual
