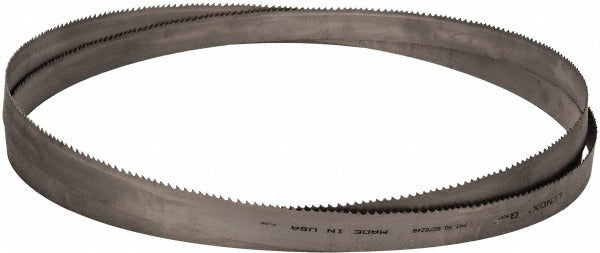

Lenox 95981QPB185740 Bandsaw Blade 3-4 Tpi Bi-metal

Product Description

The LENOX 95981QPB185740 is a welded bi-metal bandsaw blade built for high-production cutting on stationary band saw machines. It measures 18 feet 10 inches in length and 1-1/2 inches in width, with a blade thickness of 0.05 inches and a kerf width of 0.0820 inches. The tooth configuration runs at a variable pitch of 3 to 4 TPI using a single level set and a positive rake angle. The M42 Plus high speed steel tooth material and spring steel back construction are designed for durability and resistance to tooth fatigue during extended cutting operations. This blade is installed by machinists, fabrication shops, and industrial maintenance technicians on horizontal and vertical band saw equipment.

This blade is suited for contour-free straight cutting across a wide range of materials including alloy steel, carbon steel, stainless steel, tool steel, mold steel, bearing steel, aluminum, other non-ferrous metals, and titanium. The QXP series variable pitch tooth form reduces vibration and harmonic noise during cuts, which is particularly useful when transitioning between materials of varying hardness. Typical applications include structural stock cutting, bar stock, and tube or solid section work in fabrication and machine shop environments.

Key Features

• Bi-metal construction with M42 Plus high speed steel teeth bonded to a spring steel back for extended blade life
• Variable pitch 3 to 4 TPI reduces vibration and improves surface finish across material transitions
• Positive rake angle tooth geometry promotes aggressive, efficient chip clearance
• Single level tooth set and ground cutting edge deliver consistent kerf width of 0.0820 inches
• Compatible with a broad material range including titanium, stainless steel, aluminum, and multiple steel grades
• QXP series designation indicates a ground tooth profile for precision cutting performance

Compatibility

Designed as a replacement or stock blade for stationary band saw machines that accept an 18 foot 10 inch by 1-1/2 inch welded blade. Verify wheel diameter, blade guides, and tension specifications on the saw before installation.

Installation Notes

Band saw blades of this size are installed by trained machinists or industrial maintenance technicians. Power down and lock out the band saw at the disconnect before removing or installing any blade. Inspect blade guides, wheel tires, and blade tension mechanisms for wear before mounting a new blade. Follow the saw manufacturer torque and tension guidelines for 1-1/2 inch wide blades, and confirm blade tracking before running the machine under load.
