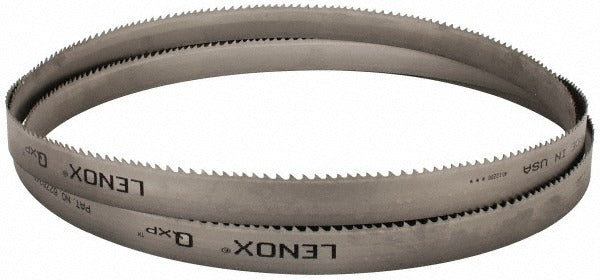

Lenox 95849QPB103315 Welded Bandsaw Blade Bi-metal

Product Description

The LENOX 95849QPB103315 is a welded bi-metal bandsaw blade designed for continuous-loop bandsaws used in metal cutting applications. It measures 10 feet 10.5 inches in total length, 1 inch wide, and 0.035 inches thick. The blade runs a variable pitch of 4 to 6 TPI with a Vari-Raker tooth set, which helps reduce vibration and chatter during cuts. The tooth tips are M42+ high speed steel, providing edge retention on tough materials. A spring steel back gives the blade flexibility and fatigue resistance through repeated cycles. This blade is installed by machinists, metal fabricators, and maintenance technicians working with horizontal or vertical metal-cutting bandsaws.

This blade is suited for cutting a wide range of metals including alloy steel, carbon steel, stainless steel, tool steel, mold steel, bearing steel, titanium, aluminum, and other non-ferrous metals. The variable pitch tooth geometry reduces harmonics and makes it effective across varying cross-sections and wall thicknesses. It is a practical choice for production shops and job sites where one blade needs to handle multiple material types without a blade change.

Key Features

• Bi-metal construction with M42+ high speed steel tooth tips for extended cutting life on hard metals
• Variable pitch 4 to 6 TPI with Vari-Raker tooth set reduces vibration and improves cut quality
• Spring steel back for flexibility and resistance to blade fatigue
• Positive rake angle for aggressive, efficient metal removal
• Kerf width of 0.058 inches for consistent, repeatable cuts
• Compatible with a broad range of metals including stainless steel, titanium, and tool steel

Compatibility

Designed as a welded replacement bandsaw blade for continuous-loop metal-cutting bandsaws that accept a 1-inch wide blade in the 10-foot 10.5-inch loop length. Verify your saw model accepts this blade width and loop length before installation.

Installation Notes

Bandsaw blade installation should be performed by a qualified technician familiar with blade tensioning procedures for the specific saw model. Disconnect power to the saw before removing the old blade or mounting the new one. Wear cut-resistant gloves when handling the coiled or uncoiled blade. Follow the saw manufacturer's tensioning specifications and confirm blade tracking before returning the machine to service.
