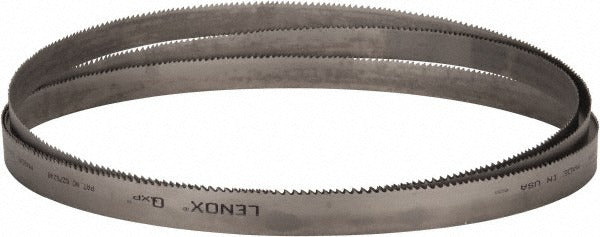

Lenox 95663QPB154725 Bandsaw Blade 15ft 6in 4-6 Tpi Bi-metal

Product Description

The LENOX 95663QPB154725 is a welded bi-metal bandsaw blade engineered for demanding metal cutting applications in production and job-shop environments. Measuring 15 feet 6 inches in length and 1-1/4 inches wide with a 0.042-inch body thickness, this blade features a variable 4 to 6 TPI pitch pattern designed to reduce vibration and improve chip evacuation across a wide range of stock sizes. The cutting edge combines M42+ high speed steel teeth with a Vari-Raker tooth set and positive rake angle, delivering aggressive cutting action with extended tooth life on hard and abrasive materials. Installation and blade changes are handled by experienced metalworking technicians or maintenance machinists.

This blade is suited for horizontal and vertical bandsaw machines used in industrial, fabrication, and maintenance settings. The variable pitch geometry makes it effective for cutting both solid and structural stock. Compatible material applications include alloy steel, carbon steel, stainless steel, tool steel, mold steel, bearing steel, titanium, aluminum, and other non-ferrous metals. It is particularly effective when cutting variable or interrupted cross-sections where a fixed-pitch blade would generate resonance and premature wear.

Key Features

• Bi-metal construction with M42+ high speed steel teeth bonded to a spring steel back for durability and flex resistance
• Variable 4 to 6 TPI Vari-Raker tooth set reduces vibration and harmonics during the cut
• Positive rake angle promotes aggressive stock removal on ferrous and non-ferrous metals
• 0.068-inch kerf width provides controlled material removal with minimal waste
• Welded blade construction ensures consistent tension and a smooth, gap-free joint
• Rated for cutting alloy steel, stainless steel, titanium, aluminum, and mold and bearing steels

Compatibility

Designed as an OEM-style replacement or direct-fit welded bandsaw blade for horizontal and vertical metal-cutting bandsaws that accept a 1-1/4-inch-wide blade at 15 feet 6 inches in loop length.

Installation Notes

Blade installation should be performed by a qualified machinist or maintenance technician with the bandsaw fully powered down and locked out per LOTO procedures. Verify wheel diameter, blade guide spacing, and tension specifications on the host machine before mounting. Inspect blade welds and tooth set before tensioning. Always wear cut-resistant gloves when handling uncoiled bandsaw blades.
