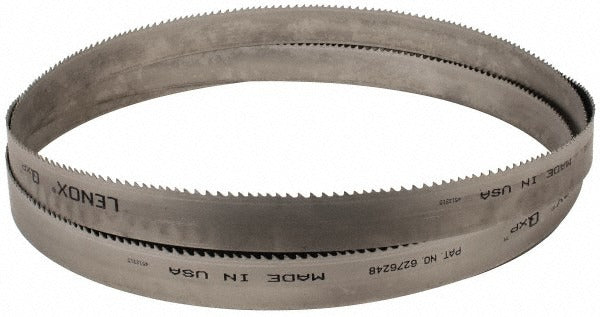

Lenox 95571QPB123660 Bandsaw Blade 12 Ft 4-6 Tpi Bi-metal

Product Description

The LENOX 95571QPB123660 is a welded bi-metal bandsaw blade designed for high-performance cutting in demanding metal fabrication and industrial applications. Measuring 12 feet in length and 1-1/4 inches wide, it runs on compatible horizontal and vertical bandsaws in production and job-shop environments. The blade is built on a spring steel back with M42+ high speed steel teeth in a Variable Pitch, Vari-Raker tooth set configuration, delivering efficient chip clearance and reduced vibration across a range of material thicknesses. A 4 to 6 TPI variable pitch pattern balances cutting speed and surface finish. This blade is installed by machinists, metalworkers, and maintenance technicians handling structural and specialty metals.

This blade is suited for cutting alloy steel, carbon steel, stainless steel, tool steel, mold steel, bearing steel, aluminum, non-ferrous metals, and titanium. The variable pitch and positive rake angle make it well matched for interrupted cuts and mixed cross-sections on production bandsaws. The Vari-Raker tooth set reduces harmonics during cutting, which is especially useful when working with difficult-to-cut materials such as stainless steel and titanium. It is appropriate for both production facilities and job shops requiring consistent, repeatable cuts on a range of metal stock profiles.

Key Features

• Bi-metal construction with M42+ high speed steel teeth bonded to a spring steel back for durability and flex resistance
• Variable pitch 4 to 6 TPI with Vari-Raker tooth set reduces vibration and extends blade life on mixed material thicknesses
• Positive rake angle promotes aggressive, efficient cutting on metal stock
• 0.042 inches blade thickness with a 0.0680 inch kerf width for precise, controlled cuts
• Compatible material applications include alloy steel, stainless steel, titanium, aluminum, and non-ferrous metals
• QXP series design intended for demanding production cutting environments

Compatibility

Designed as an OEM-style welded replacement blade for bandsaws accepting a 12-foot blade length and 1-1/4 inch blade width. Verify your saw manufacturer specifications for blade length tolerance, wheel diameter, and blade width capacity before installation.

Installation Notes

Bandsaw blade installation should be performed by a qualified technician with the saw fully powered down and the blade tension released before removing the old blade. Proper blade tracking and tension must be set according to the saw manufacturer specifications before running the blade. Blade guides and thrust bearings should be inspected and adjusted to support the 1-1/4 inch blade width. Always wear cut-resistant gloves when handling coiled or uncoiled bandsaw blades.
