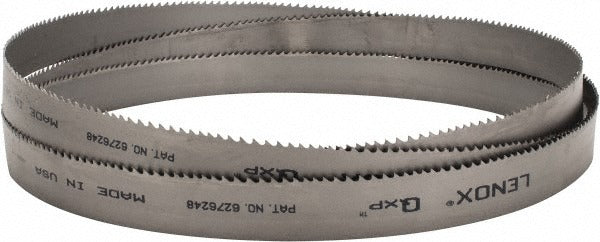

Lenox 94803QPB113505 Bandsaw Blade 138 in 4-6 Tpi Bi-metal

Product Description

The LENOX 94803QPB113505 is a welded bi-metal bandsaw blade designed for demanding metal-cutting applications in professional shop and fabrication environments. The blade measures 138 inches in length and 1-1/4 inches in width with a 0.042-inch body thickness and a variable-pitch tooth pattern ranging from 4 to 6 TPI. The tooth material is M42+ high speed steel with a positive rake angle and Vari-Raker tooth set, providing aggressive cutting action with reduced vibration across a wide range of metal profiles. Installed by machinists and metal fabricators, this blade is engineered to deliver consistent performance on production bandsaw equipment.

This blade is suited for horizontal and vertical metal-cutting bandsaws in industrial and commercial settings. Its variable pitch and Vari-Raker set make it effective across multiple material types and cross-sections, from thin-wall tubing to solid bar stock. The QXP series construction targets applications where productivity and blade life on difficult metals are the primary concerns. It is sold individually and arrives fully welded and ready to mount.

Key Features

• Variable 4 to 6 TPI pitch reduces harmonic vibration during cut
• M42+ high speed steel teeth for extended life on hard and abrasive metals
• Vari-Raker tooth set promotes chip clearance and consistent cutting
• Spring steel back provides flexibility and fatigue resistance
• 0.0680-inch kerf width minimizes material loss per cut
• Fully welded construction — ready to install out of the package

Compatibility

Designed as a direct-mount replacement bandsaw blade for professional metal-cutting bandsaws that accept a 138-inch by 1-1/4-inch blade. Compatible material applications include alloy steel, carbon steel, stainless steel, tool steel, mold steel, bearing steel, aluminum, non-ferrous metals, and titanium.

Installation Notes

Installation should be performed by a qualified technician familiar with bandsaw blade tensioning and tracking procedures. Power down and lockout the bandsaw before removing the old blade or mounting the new one. Verify that blade tension and guide settings match the manufacturer specifications for the 1-1/4-inch blade width before resuming operation. Always wear cut-resistant gloves when handling bandsaw blades.
