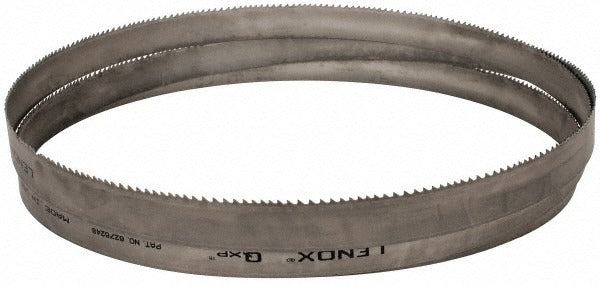

Lenox 94489QPB134115 Bandsaw Blade 162in 1-1/4in 4-6 Tpi

Product Description

The LENOX 94489QPB134115 is a welded bi-metal bandsaw blade designed for high-performance metal cutting in professional shop and fabrication environments. The blade measures 162 inches (13 feet 6 inches) in length and 1-1/4 inches in width, with a 0.042-inch body thickness and a variable-pitch tooth pattern ranging from 4 to 6 TPI. The tooth material is M42+ high speed steel with a positive rake angle and Vari-Raker tooth set, which helps reduce vibration and extend blade life during demanding cuts. Licensed machinists, maintenance technicians, and metalworking fabricators are the primary installers.

This blade is suited for production and job-shop bandsaw applications where a wide range of metal stock is processed. The variable pitch and positive rake geometry perform well on solid bar, structural sections, and bundled stock. Rated for use on alloy steel, carbon steel, stainless steel, tool steel, mold steel, bearing steel, aluminum, non-ferrous metals, and titanium, this blade covers a broad material application range in both light manufacturing and heavy fabrication settings. It is a single-blade package intended for standard vertical or horizontal metal-cutting bandsaws accepting a 1-1/4-inch blade width.

Key Features

• Bi-metal construction with M42+ high speed steel teeth bonded to a spring steel back for durability and flex resistance
• Variable pitch (4 to 6 TPI) with Vari-Raker tooth set reduces vibration and improves chip clearance
• Positive rake angle promotes aggressive, efficient cutting on a wide range of metals
• 0.068-inch kerf width provides consistent, repeatable cut quality
• Welded blade loop in a 162-inch length fits many standard metal-cutting bandsaw machines
• Rated for alloy steel, stainless steel, tool steel, titanium, aluminum, and additional non-ferrous materials

Compatibility

Designed as an OEM-style replacement or upgrade blade for professional metal-cutting bandsaws accepting a 1-1/4-inch blade width and a 162-inch (13 feet 6 inches) blade length.

Installation Notes

Bandsaw blade replacement should be performed by a qualified machinist or maintenance technician with the saw fully de-energized and locked out per OSHA lockout/tagout procedures. Verify wheel diameter, blade guides, and blade tension specifications on the host machine before installing. Wear cut-resistant gloves when handling the coiled blade. Allow a short run-in period at reduced feed pressure when first using a new blade to seat the tooth geometry.
