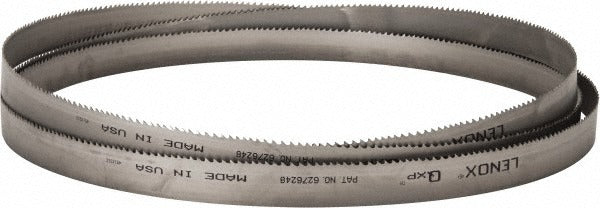

Lenox 94284QPB154675 Bandsaw Blade 184in 4-6 Tpi Bi-metal

Product Description

The LENOX 94284QPB154675 is a welded bi-metal bandsaw blade engineered for demanding metal-cutting applications in professional shop and fabrication environments. The blade measures 184 inches (15 feet 4 inches) in length and 1-1/4 inches in width, with a 0.042-inch thickness and a kerf width of 0.068 inches. The cutting edge uses a variable 4 to 6 TPI pitch pattern with a Vari-Raker tooth set and positive rake angle, which helps reduce vibration and extend blade life when cutting a wide range of ferrous and non-ferrous materials. This blade is part of the LENOX QXP series and carries an M42+ material grade designation for the high speed steel tooth material.

This blade is suited for use in vertical or horizontal band saws in production shops, maintenance facilities, and metal fabrication operations. The variable pitch and Vari-Raker tooth geometry make it effective across a broad material range including alloy steel, carbon steel, stainless steel, tool steel, mold steel, bearing steel, aluminum, non-ferrous metals, and titanium. It is intended for contour cutting applications where consistent performance across varying cross-sections is required. Licensed trade professionals and experienced machinists are the primary installers and users of this blade.

Key Features

• Bi-metal construction with M42+ high speed steel teeth bonded to a spring steel back for durability and flex resistance
• Variable 4 to 6 TPI pitch with Vari-Raker tooth set reduces vibration and improves cut quality
• Positive rake angle promotes aggressive, efficient cutting on hard metals including stainless steel and titanium
• 184-inch welded loop length fits standard band saw machines requiring that throat capacity
• 1-1/4-inch blade width and 0.068-inch kerf width suit structural and solid stock cutting tasks
• Compatible material applications include alloy steel, aluminum, carbon steel, stainless steel, tool steel, mold steel, bearing steel, and titanium

Compatibility

Designed as an OEM-style replacement or direct-fit welded bandsaw blade for band saw machines accepting a 184-inch (15 feet 4 inches) blade loop in 1-1/4-inch width.

Installation Notes

Band saw blade installation should be performed by a qualified machinist or shop technician familiar with the specific machine model. Always disconnect and lock out power to the band saw before removing the old blade or threading the new one. Verify blade tension and tracking per the machine manufacturer's specifications before resuming operation. Wear cut-resistant gloves when handling the blade, as the toothed edge presents a laceration hazard during installation.
