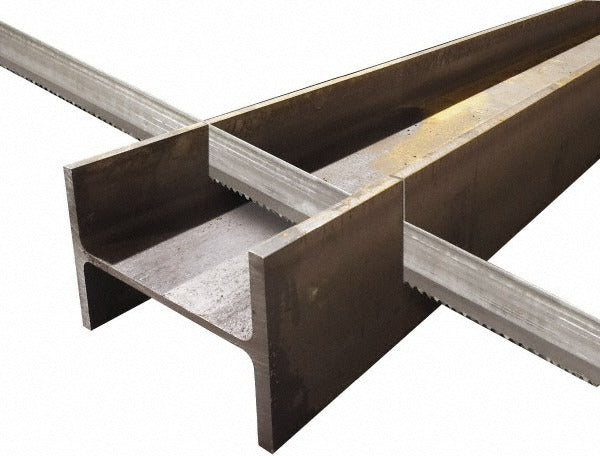

Lenox 93661RPB92935 Bandsaw Blade 5-8 Tpi Bi-metal

Product Description

The LENOX 93661RPB92935 is a welded bi-metal bandsaw blade engineered for demanding metal-cutting applications in production and maintenance environments. Measuring 115.5 inches in length and 3/4 inch wide with a 0.035-inch back thickness, this blade fits vertical and horizontal bandsaws commonly used in metalworking shops and fabrication facilities. The variable-pitch tooth form ranging from 5 to 8 TPI reduces harmonic vibration during cuts, extending blade life and improving cut quality. The high-speed steel M42 tooth material and positive rake angle deliver aggressive, efficient cutting through a range of ferrous and non-ferrous stock. Licensed machinists, fabricators, and maintenance mechanics are the primary installers and users.

This blade is suited for contour-free straight cuts on metal bar stock, tubing, structural shapes, and solid sections in both light industrial and heavy shop settings. The RX Plus series variable-pitch construction makes it a practical choice when operators are cycling through mixed material sizes or need a single blade to handle a range of cross-sections without tool changes. The Vari-Raker tooth set helps clear chips efficiently and reduces blade loading during extended cutting runs.

Key Features

• Variable pitch 5 to 8 TPI reduces vibration and harmonic chatter during cuts
• M42 high-speed steel teeth deliver extended tooth life on tough metals
• Positive rake angle improves cutting aggression and feed rate efficiency
• Vari-Raker tooth set promotes efficient chip clearance and reduces blade loading
• Spring steel back provides flexibility and fatigue resistance during continuous use
• Welded construction for consistent blade tracking on bandsaw wheels

Compatibility

Designed as an OEM-style replacement bandsaw blade for vertical and horizontal metal-cutting bandsaws requiring a 115.5-inch blade length with a 3/4-inch width and 0.035-inch thickness.

Installation Notes

Blade installation should be performed by a qualified machinist or maintenance technician familiar with bandsaw equipment. Power down and lockout/tagout the saw before removing the existing blade or mounting the new one. Verify wheel tracking and blade tension according to the saw manufacturer's specification before resuming cuts. Wear cut-resistant gloves when handling the coiled blade during installation.
