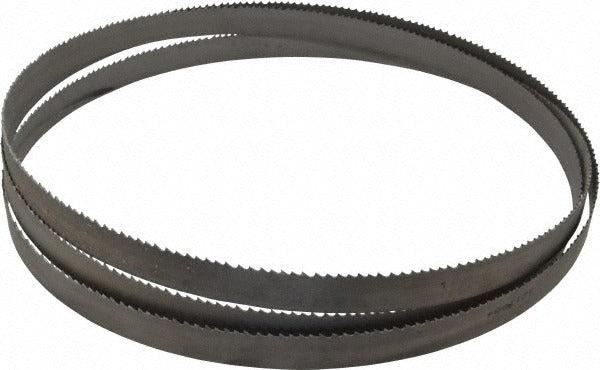

Lenox 93644RPB92745 Bandsaw Blade 9 Ft 3/4 in 5-8 Tpi Bi-metal

Product Description

The LENOX 93644RPB92745 is a welded bi-metal bandsaw blade designed for demanding metal-cutting applications in professional shop and field environments. Part of the RX Plus series, this blade measures 9 feet in length and 3/4 inch in width, with a blade thickness of 0.035 inches and a kerf width of 0.058 inches. The M42 high speed steel tooth material delivers hardness and heat resistance well suited for cutting ferrous metals and structural materials. A variable pitch design ranging from 5 to 8 TPI reduces harmonic vibration and noise during cuts, improving both cut quality and blade life. Licensed trades and fabrication professionals rely on this format for horizontal and vertical band saw machines in production and maintenance settings.

This blade is suited for use on metal-cutting band saws that accept a 9-foot blade with a 3/4-inch width. The variable pitch tooth form with a Vari-Raker tooth set handles interrupted cuts, structural sections, and solid bar stock effectively. The positive rake angle promotes aggressive chip removal, making it appropriate for production cutting of metals in manufacturing, mechanical contracting, and pipe fabrication shops.

Key Features

• M42 high speed steel teeth for extended cutting life on ferrous and non-ferrous metals
• Variable pitch 5 to 8 TPI reduces vibration and improves surface finish
• Vari-Raker tooth set optimizes chip clearance and minimizes tooth loading
• Spring steel back for flex resistance and fatigue life during continuous operation
• Welded construction provides a seamless loop for consistent blade tracking
• 0.058-inch kerf width minimizes material loss per cut

Compatibility

Designed as a replacement or service blade for metal-cutting band saw machines that accept a 9-foot blade loop with a 3/4-inch blade width and 0.035-inch blade thickness.

Installation Notes

Installation should be performed by a qualified machinist or maintenance technician familiar with band saw blade tensioning and tracking procedures. Power down and lock out the saw before removing the existing blade or installing this blade. Set blade tension and tracking per the saw manufacturer's specifications before operating. Inspect blade guides and thrust bearings for wear when replacing a blade.
