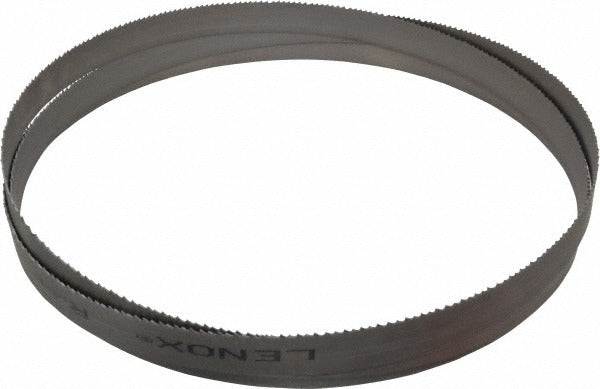

Lenox 93581RPB113355 Bandsaw Blade 11 Ft 1 in 5-8 Tpi

Product Description

The LENOX 93581RPB113355 is a welded bi-metal bandsaw blade engineered for demanding metal-cutting applications. Spanning 11 feet in length, it measures 1 inch wide and 0.035 inches thick, with a variable pitch tooth pattern ranging from 5 to 8 TPI. The blade combines a spring steel back with M42 high speed steel teeth, a combination that resists fatigue and maintains edge life under continuous cutting loads. The Vari-Raker tooth set and positive rake angle promote aggressive chip removal while reducing vibration. This is an RX Plus series blade intended for professional use on industrial and commercial bandsaw machines.

This blade is suited for horizontal and vertical bandsaws used in metalworking shops, fabrication facilities, maintenance departments, and industrial trade environments. The variable pitch tooth form reduces harmonic vibration when cutting a range of cross-sections, including tubing, solid bar stock, and structural shapes. The toothed, milled, variable cutting edge style allows it to handle both thin-walled and solid workpieces without requiring a blade change. Installation and tensioning are performed by machinists or metal fabrication technicians familiar with industrial bandsaw equipment.

Key Features

• Bi-metal construction with M42 high speed steel teeth bonded to a spring steel back for durability and flex resistance
• Variable pitch (5 to 8 TPI) with Vari-Raker tooth set reduces vibration and improves cut quality across varied cross-sections
• Positive rake angle promotes aggressive cutting action and efficient chip evacuation
• 0.0580 inch kerf width minimizes material loss per cut
• Toothed, milled, and variable cutting edge style for versatility across workpiece geometries
• Welded blade construction for consistent weld integrity and continuous loop performance

Compatibility

Designed as an OEM-style replacement or upgrade blade for industrial and commercial bandsaw machines accepting an 11-foot welded loop blade that is 1 inch wide.

Installation Notes

Blade installation and tensioning should be performed by a qualified machinist or metal fabrication technician. Disconnect and lock out power to the bandsaw before removing the old blade or installing the new one, in accordance with OSHA lockout/tagout procedures. Verify that the bandsaw wheel width and blade guides are compatible with a 1-inch-wide blade before installation. Never operate the machine without all blade guards fully seated and secured.
