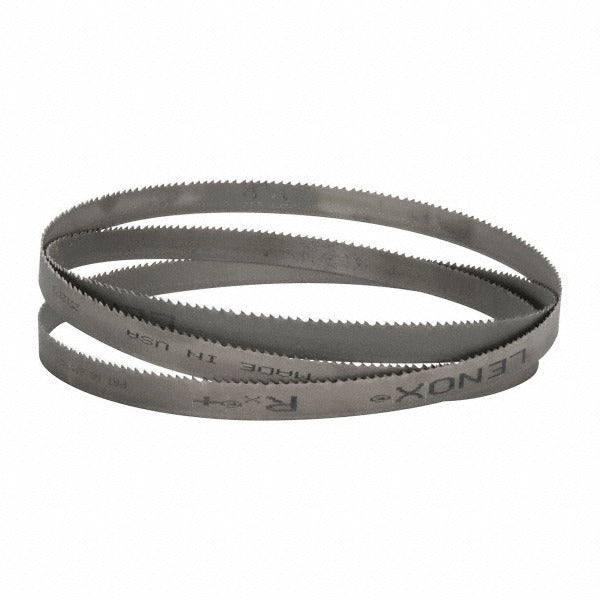

Lenox 93328RPB72360 Bandsaw Blade 93 in 5-8 Tpi Bi-metal

Product Description

The LENOX 93328RPB72360 is a welded bi-metal bandsaw blade designed for cutting metal and structural materials in industrial and shop environments. The blade measures 93 inches in total length and 3/4 inch wide, with a 0.035-inch blade thickness and a kerf width of 0.058 inches. Tooth configuration is variable pitch, ranging from 5 to 8 TPI, with a positive rake angle and Vari-Raker tooth set. The cutting edge combines milled and toothed geometry for efficient chip evacuation across a range of material cross-sections. This blade is part of the LENOX RX Plus series and is installed by metalworking professionals and fabrication shops.

The 93328RPB72360 is suited for use on horizontal and vertical metal-cutting bandsaws with a 93-inch blade capacity. Variable pitch tooth geometry reduces harmonic vibration during the cut, making it effective on solid bar stock, structural shapes, and tubing. The M42 high-speed steel tooth material provides heat and wear resistance for cutting alloy steels, stainless, and other tough ferrous materials. This blade is appropriate for production cutting environments where consistent performance across varying cross-sections is required.

Key Features

• Bi-metal construction with M42 high-speed steel teeth bonded to a spring steel back for durability and flex resistance
• Variable pitch 5 to 8 TPI reduces vibration and improves cut quality across varied material profiles
• Vari-Raker tooth set promotes consistent chip clearance and reduces tooth loading
• Positive rake angle improves cutting aggression on ferrous metals and alloy steels
• Milled and toothed variable cutting edge style for precise, consistent kerf
• Part of the RX Plus series, designed for extended blade life in production cutting

Compatibility

Designed as a direct-fit replacement for bandsaw machines requiring a 93-inch welded blade with a 3/4-inch width. Confirm blade guide and wheel specifications on the host machine before installation.

Installation Notes

Installation should be performed by a qualified metalworking technician or machinist. Power down and lock out the bandsaw before mounting or removing any blade. Verify blade tension according to the machine manufacturer specifications using the onboard tension gauge. Blade guides and thrust bearings should be inspected and adjusted after blade replacement to prevent tracking issues or premature wear.
