Lenox 91230NEB103315 Welded Bandsaw Blade 10 Tpi

Product Description

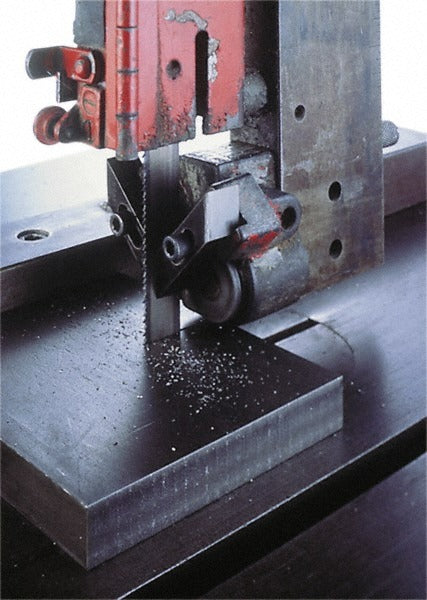

The LENOX 91230NEB103315 is a welded bandsaw blade built for contour and straight cutting applications in metal fabrication and general trade use. It measures 10 feet 10.5 inches in length, 1 inch in width, and 0.035 inches thick. The blade runs a constant 10 teeth per inch (TPI) pitch with a raker tooth set and straight tooth form, which provides consistent chip clearance and controlled cut quality across a range of ferrous and non-ferrous stock. The carbon steel construction on both the blade body and tooth material makes it a dependable choice for high-cycle cutting environments.

This blade is suited for horizontal and vertical bandsaw machines that accept a blade measuring 10 feet 10.5 inches in length and 1 inch in width. The constant pitch and raker set make it appropriate for cutting uniform cross-sections such as bar stock, pipe, and structural profiles. Fabrication shops, pipefitters, and general metalworking trades typically stock this blade for production or maintenance cutting. The hard back construction resists fatigue and helps maintain blade tracking under continuous load.

Key Features

• 10 TPI constant pitch for uniform chip load and consistent cut finish
• Raker tooth set for efficient chip evacuation in straight cuts
• Carbon steel blade body and tooth material for durability in general metalworking
• Hard back construction reduces flex fatigue and improves tracking stability
• Contour cutting capable with a 1 inch wide profile
• Welded construction for continuous loop operation on bandsaw machines

Compatibility

Designed as an OEM-style replacement or stock blade for bandsaw machines requiring a 10 feet 10.5 inch loop blade with a 1 inch width and 0.035 inch thickness.

Installation Notes

Bandsaw blade installation should be performed by a qualified technician with the machine fully powered down and the blade tension released before removing the old blade. Confirm wheel diameter, blade guide spacing, and throat capacity match the blade dimensions before mounting. Follow the bandsaw manufacturer guidelines for tensioning and tracking adjustment before running the blade under load. Wear cut-resistant gloves when handling coiled or uncoiled bandsaw blades.
