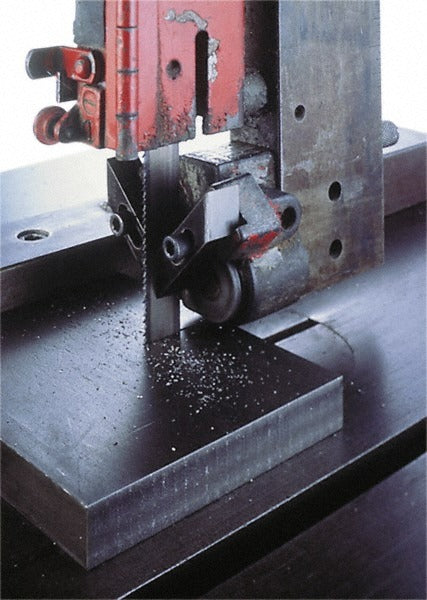

Lenox 91091NEB113505 Welded Bandsaw Blade 10 Tpi

Product Description

The LENOX 91091NEB113505 is a welded bandsaw blade built for contour cutting in metal fabrication, woodworking, and general shop applications. It measures 11 feet 6 inches in length and 0.032 inches thick, with a 3/4-inch blade width and a 10 teeth-per-inch (TPI) constant pitch. The blade body and teeth are both carbon steel with a hard back and straight tooth form, making it a reliable choice for consistent straight and curved cuts. Installation requires a bandsaw with a compatible wheel size for this blade loop length. Suitable for journeyman machinists, maintenance technicians, and shop fabricators.

This blade is suited for general-purpose bandsawing where a constant 10 TPI pitch provides a balance between cut speed and surface finish. The raker tooth set helps clear chips during cutting, reducing heat buildup and blade wear. At 11 feet 6 inches, this loop length fits mid-size vertical or horizontal bandsaws commonly found in production shops and maintenance facilities. The toothed edge is factory-welded, eliminating the need for field brazing and ensuring a consistent weld joint.

Key Features

• 11 feet 6 inches blade loop length, factory welded
• 10 TPI constant pitch for steady chip load and consistent finish
• 3/4-inch blade width supports contour and straight-line cutting
• Carbon steel blade body and teeth for general-purpose durability
• Raker tooth set aids chip evacuation and reduces heat
• Hard back design resists flexing and extends blade life

Compatibility

Designed as a replacement welded bandsaw blade for mid-size bandsaws requiring an 11-foot 6-inch blade loop with a 3/4-inch width and 10 TPI constant pitch configuration.

Installation Notes

Installation should be performed by a qualified technician familiar with bandsaw blade tensioning and tracking procedures. Disconnect and lock out power to the bandsaw before removing the old blade or mounting the new one. Verify that wheel diameter, blade guides, and blade guard clearances are compatible with a 3/4-inch wide blade before installation. Follow the bandsaw manufacturer guidelines for proper blade tension to avoid premature weld failure or blade breakage.
