Lenox 90966NEB92745 Welded Bandsaw Blade 14 Tpi

Product Description

The LENOX 90966NEB92745 is a welded bandsaw blade designed for contour cutting applications in trade and industrial environments. Built from carbon steel with a matching carbon steel tooth construction, this blade measures 9 feet in length and 3/4 inch in width with a 0.032-inch thickness. It runs a constant pitch at 14 teeth per inch (TPI) with a raker tooth set and straight tooth form, delivering consistent chip clearance and smooth cut progression. A hard back type provides rigidity during curved and straight cuts. Metalworking professionals, fabricators, and maintenance mechanics typically work with blades in this specification range.

This blade is suited for contour cutting tasks on metal and similar materials in shop and production settings. The 14 TPI constant pitch configuration works well for cutting thin to medium stock where a controlled, consistent finish is required. Raker set teeth clear chips efficiently in applications where blade loading is a concern. The welded construction means the blade arrives ready to mount with no field joining required.

Key Features

• 14 TPI constant pitch for consistent chip removal on thin to medium stock
• Raker tooth set promotes efficient chip clearance during cuts
• Carbon steel blade and tooth material for general-purpose cutting durability
• Hard back type provides structural rigidity and reduces blade flex
• Straight tooth form delivers predictable cutting geometry

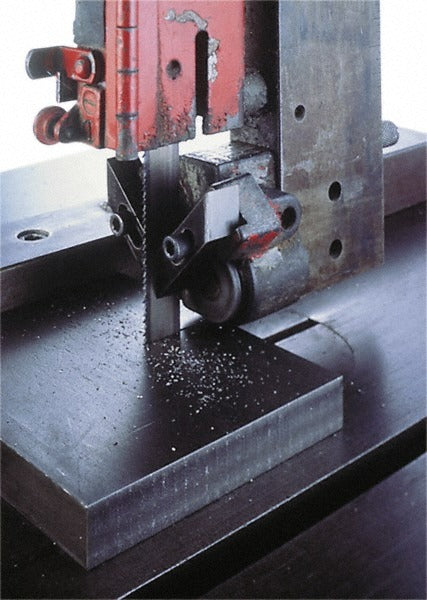

• Contour cutting capable for curved and irregular profiles

Compatibility

Designed as a welded replacement bandsaw blade for saws accepting a 9-foot blade loop, 3/4-inch wide, with 0.032-inch blade thickness. Confirm wheel diameter, blade guide clearance, and tension specifications on the host saw before installation.

Installation Notes

Bandsaw blade installation should be performed by a qualified technician. Disconnect and lock out power to the saw before removing the old blade or mounting the new one. Verify blade tension according to the saw manufacturer specifications and confirm blade tracking before operating. Wear cut-resistant gloves when handling the blade loop, as the toothed edge presents a laceration hazard during mounting.
