Lenox 90487NEB72285 Welded Bandsaw Blade 10 Tpi

Product Description

The LENOX 90487NEB72285 is a welded bandsaw blade designed for contour cutting applications in metalworking and fabrication environments. Measuring 7 feet 6 inches in length and 0.5 inches wide with a 0.025-inch blade thickness, it runs at 10 teeth per inch (TPI) in a constant pitch configuration. The blade is constructed from carbon steel throughout, including both the blade body and tooth material, with a hard back type for rigidity under load. The raker tooth set and straight tooth form make it well-suited for general-purpose cutting tasks where consistent chip clearance and controlled feed rates are required. Licensed tradespeople and skilled fabricators handling production or repair cutting work are the primary installers and operators of this blade.

This blade fits bandsaw machines with a 7-foot 6-inch blade capacity and a 0.5-inch blade guide width. The 10 TPI constant pitch pattern is appropriate for cutting mild steel, tubing, bar stock, and similar ferrous materials at moderate cross-sections. The toothed cutting edge and raker set pattern deliver balanced cutting action for both straight and contour cuts. Fabricators, maintenance mechanics, and pipe trades workers who use vertical or horizontal bandsaws in shop environments will find this blade suited to general metal cutting at production or service volumes.

Key Features

• 90-inch (7 ft 6 in) welded loop length fits compatible bandsaw machines directly without field welding
• 10 TPI constant pitch provides consistent chip load and smooth cut finish on moderate cross-section stock
• Carbon steel blade body and tooth material offer solid performance on mild steel and ferrous materials
• Raker tooth set promotes efficient chip evacuation and reduces blade loading during cuts
• Hard back construction maintains blade tension and resists flex fatigue during extended use

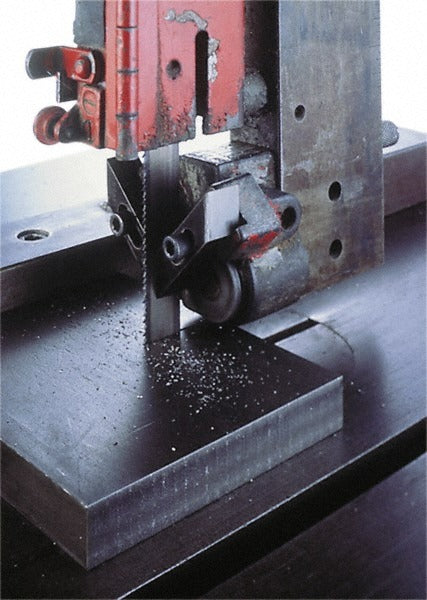

• Contour cutting capable for curved and radius cuts on compatible vertical bandsaw setups

Compatibility

Designed as a direct-fit welded replacement blade for bandsaw machines requiring a 7-foot 6-inch blade loop with a 0.5-inch width and 0.025-inch gauge. Confirm blade length, width, and thickness specifications against your machine's requirements before installation.

Installation Notes

Bandsaw blade replacement should be performed by a qualified technician familiar with the specific machine model and its blade tensioning system. Disconnect and lock out all power to the bandsaw before removing the old blade or installing the new one. Verify blade tracking, tension, and guide bearing clearance according to the machine manufacturer's specifications after installation. Always wear cut-resistant gloves when handling bandsaw blades, as edges remain sharp during installation.
