Lenox 90425NEB51640 Welded Bandsaw Blade 18 Tpi

Product Description

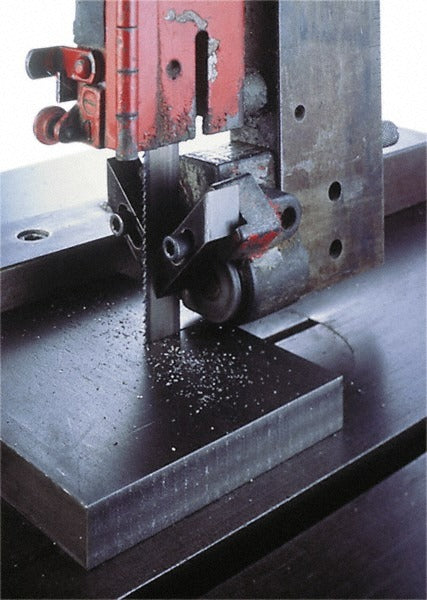

The LENOX 90425NEB51640 is a welded bandsaw blade designed for contour cutting applications in metalworking and fabrication environments. At 64.5 inches in length and 0.025 inches thick, this blade is built for saws requiring a compact, precision loop. It features a carbon steel body and carbon steel teeth with a straight tooth form and raker set, delivering consistent chip clearance and controlled feed rates. The constant pitch pattern at 18 teeth per inch (TPI) suits fine finish cuts on thin-walled tubing, small structural shapes, and non-ferrous stock. Licensed tradespeople and fabrication shop technicians are the primary installers and users.

This blade is suited for light-duty contour bandsaw work in production and maintenance settings. The 18 TPI constant pitch makes it well matched to thin materials where tooth-per-inch count needs to span the workpiece cross-section at all times. The raker set promotes straight, controlled cutting rather than aggressive stock removal. The hard back type adds rigidity and resistance to blade wander during the cut. It is a single-unit replacement blade packaged individually.

Key Features

• 64.5-inch welded loop fits compact bandsaw models requiring this blade length
• 18 TPI constant pitch for fine, consistent cuts on thin cross-sections
• Raker tooth set provides balanced chip clearance and straight tracking
• Straight tooth form suited to general contour and detail cutting
• Carbon steel blade and tooth material for light-to-medium duty cutting cycles
• Hard back type resists flex and blade wander under feed pressure

Compatibility

Designed as a welded replacement bandsaw blade for portable or benchtop bandsaws accepting a 64.5-inch blade loop at 0.025 inches thick. Verify wheel diameter, blade guide clearance, and tension range on the specific saw before installation.

Installation Notes

Bandsaw blade replacement should be performed by a qualified technician familiar with blade tensioning and guide adjustment procedures. Disconnect power to the saw completely before removing the existing blade or installing the new one. Wear cut-resistant gloves when handling the coiled or uncoiled blade loop. After installation, confirm blade tracking, tension, and guide alignment before resuming operation.
