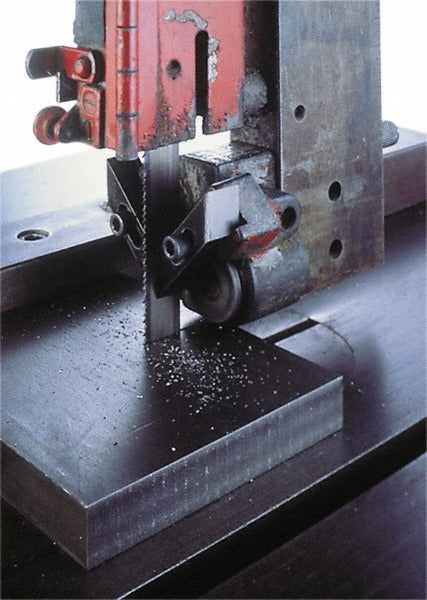

Lenox 90106NEB72375 Welded Bandsaw Blade 14 Tpi

Product Description

The LENOX 90106NEB72375 is a welded carbon steel bandsaw blade designed for contour cutting applications on metal-cutting and general-purpose bandsaws. At 7 feet 9.5 inches in length and 0.025 inches thick, this blade is sized for benchtop and floor-standing bandsaw units commonly used in fabrication shops, maintenance facilities, and trade service environments. It runs a constant pitch of 14 teeth per inch with a raker tooth set and straight tooth form, delivering consistent chip clearance and predictable cut quality on ferrous and non-ferrous materials. Installation is handled by machinists, maintenance technicians, and metal fabrication professionals.

This blade suits bandsaw machines configured for a 7 feet 9.5 inch loop length and a 0.25 inch blade width. The constant 14 TPI pitch makes it well matched for cutting thin-wall tubing, small-diameter solid stock, and sheet material where a fine, controlled kerf is required. The hard back construction resists flex fatigue during continuous cutting cycles, making it suitable for production-level use as well as intermittent shop tasks.

Key Features

• Welded loop construction — 7 feet 9.5 inches total blade length
• 14 TPI constant pitch for consistent chip load and cut finish
• Carbon steel blade and tooth material for general-purpose metal cutting
• Raker tooth set promotes efficient chip evacuation
• Straight tooth form suited for precision contour cuts
• Hard back resists fatigue and maintains blade tracking stability

Compatibility

Designed as a direct-fit replacement for bandsaw machines requiring a 7 feet 9.5 inch welded blade loop with a 0.25 inch width and 0.025 inch blade thickness.

Installation Notes

Bandsaw blade replacement should be performed by a qualified technician with the machine fully de-energized and locked out before removing the blade guard or tensioning mechanism. Verify wheel diameter, blade length, and blade width specifications against the machine nameplate before installing. Proper blade tension and tracking adjustment per the saw manufacturer's guidelines are required before returning the unit to service. Safety glasses and cut-resistant gloves are standard PPE for blade handling.
