Lenox 90080NEB62030 Welded Bandsaw Blade 10 Tpi

Product Description

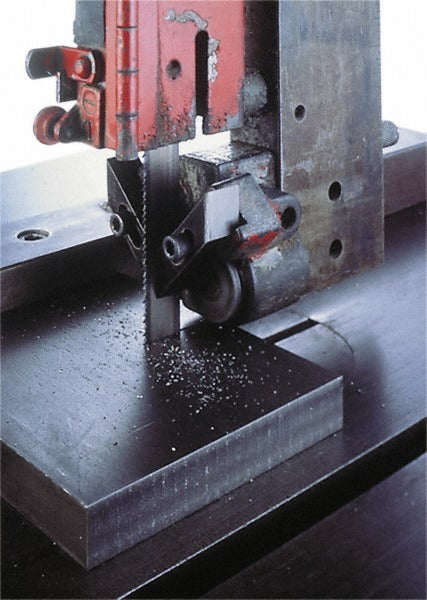

The LENOX 90080NEB62030 is a welded bandsaw blade designed for contour cutting applications in metalworking and general fabrication shops. At 80 inches (6 feet 8 inches) in length and 0.25 inches wide, this blade runs on benchtop and floor-standing bandsaws sized to accept that loop length. The blade is made from carbon steel throughout, with a constant pitch of 10 teeth per inch (TPI) and a raker tooth set for balanced chip clearance. Straight tooth form and a hard back construction contribute to consistent tracking and reduced blade wander during cuts. Installed by machinists, fabricators, and general tradespeople, this blade handles a range of materials suited to carbon steel tooling.

This blade is suited for light contour cutting in production and job-shop environments where a 10 TPI constant-pitch blade is specified. The raker set pattern alternates teeth left, straight, and right, making it a reliable choice for general-purpose cuts through ferrous and non-ferrous stock at moderate feed rates. The 0.025-inch blade thickness keeps blade stress low on tighter radius cuts. Shops running continuous production cuts on smaller bandsaws will find this loop length and width combination a common fit.

Key Features

• 80-inch welded loop fits bandsaws sized for 6 feet 8 inches blade length
• 10 TPI constant pitch for smooth, consistent cutting action
• Raker tooth set for balanced chip evacuation during straight and contour cuts
• Carbon steel blade and tooth material for general-purpose cutting applications
• Straight tooth form with hard back for stable tracking
• Contour cutting capable by design

Compatibility

Designed as an OEM-style replacement welded bandsaw blade for bandsaws accepting an 80-inch blade loop with a 0.25-inch blade width.

Installation Notes

Bandsaw blade installation should be performed by qualified shop personnel with the machine fully powered down and locked out per OSHA lockout/tagout procedures. Verify wheel diameter and blade guide spacing match the blade width and thickness before installing. Tension the blade according to the bandsaw manufacturer's specifications and confirm proper tracking on the wheels before resuming operation. Inspect guides and thrust bearings for wear when replacing a blade.
