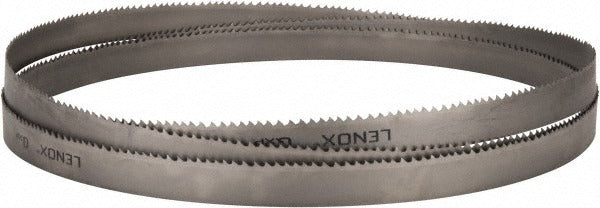

Lenox 89783QPB154675 Bandsaw Blade 184 in 3-4 Tpi Bi-metal

Product Description

The LENOX 89783QPB154675 is a welded bi-metal bandsaw blade engineered for demanding metal-cutting applications in professional shop and industrial environments. The blade measures 184 inches in total length, 1-1/4 inches in width, and 0.042 inches in thickness, with a variable pitch of 3 to 4 teeth per inch. The tooth body is constructed from M42-grade high speed steel with a positive rake angle and single level set, delivering aggressive stock removal with reduced blade deflection. The spring steel back provides flexibility and fatigue resistance during continuous cutting cycles. This blade is part of the LENOX QXP series, designed for operators who need consistent performance cutting a broad range of metals.

This blade is suited for use on vertical and horizontal bandsaws in fabrication shops, machine shops, and MRO environments. Its variable pitch and M42-plus tooth material make it effective across a wide range of material types and cross-sections. Typical applications include structural cutting, tube and pipe work, and solid bar stock in both production and job shop settings. Installation is performed by licensed or experienced shop technicians on band saws configured for 184-inch blade lengths and 1-1/4-inch blade width capacity.

Key Features

• M42-grade high speed steel teeth with positive rake angle for aggressive metal cutting
• Variable pitch at 3 to 4 TPI reduces harmonics and vibration across varying material cross-sections
• Spring steel back construction provides flexibility and resistance to fatigue cracking
• Single level tooth set with ground tooth form for consistent kerf width of 0.070 inches
• Bi-metal construction bonds HSS tooth material to a flexible spring steel backer for extended blade life
• Compatible with a wide range of materials including stainless steel, titanium, alloy steel, aluminum, and mold steel

Compatibility

Designed for horizontal and vertical bandsaw machines configured to accept a 184-inch blade length and 1-1/4-inch blade width. Suitable for cutting alloy steel, aluminum, non-ferrous metal, carbon steel, stainless steel, tool steel, mold steel, bearing steel, and titanium, as specified in the product data.

Installation Notes

Blade installation should be performed by qualified shop personnel familiar with bandsaw equipment. Disconnect and lock out power to the saw before removing or installing any blade. Verify that blade guides, wheel alignment, and blade tension settings are appropriate for a 1-1/4-inch bi-metal blade before operating. Allow the blade to run-in at reduced feed pressure during initial cuts to seat the tooth set and extend service life.
