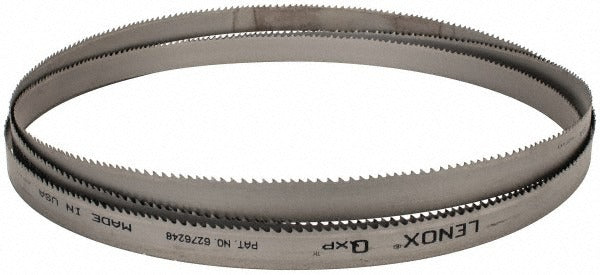

Lenox 89486QPB134115 Bandsaw Blade 13.5 in 4-6 Tpi Bi-metal

Product Description

The LENOX 89486QPB134115 is a welded bi-metal bandsaw blade engineered for demanding metal cutting applications in industrial and fabrication environments. The blade measures 13 feet 6 inches in total length, 1 inch wide, and 0.035 inches thick, with a variable pitch tooth pattern ranging from 4 to 6 teeth per inch (TPI). The M42 high-speed steel tooth tips are electron beam welded to a spring steel back, giving the blade a balance of edge retention and flex resistance that straight high-carbon blades cannot match. Licensed metalworking professionals and fabrication shop technicians are the primary installers and operators of this blade.

This blade is suited for production-level bandsaw cutting of a wide range of metals, including alloy steel, carbon steel, stainless steel, tool steel, mold steel, bearing steel, aluminum, non-ferrous metals, and titanium. The variable pitch tooth geometry reduces harmonics and vibration during cutting, which is especially beneficial when cutting variable cross-sections or structural profiles. It is intended for use on horizontal or vertical metal-cutting bandsaws that accept a 13-foot 6-inch blade loop. The QXP series designation indicates compatibility with high-performance cutting applications requiring tight kerf control.

Key Features

• Bi-metal construction: M42 high-speed steel teeth bonded to a spring steel back for durability and flex life
• Variable pitch (4 to 6 TPI) with Vari-Raker tooth set reduces vibration and improves cut finish
• Positive rake angle promotes aggressive, efficient chip removal in metal cutting
• Kerf width of 0.058 inches minimizes material loss per cut
• Toothed, milled, and variable cutting edge style for broad material compatibility
• Suitable for alloy steel, stainless steel, titanium, aluminum, and other metals

Compatibility

Designed for metal-cutting bandsaws that accept a welded blade loop measuring 13 feet 6 inches in length, 1 inch in width, and 0.035 inches in thickness. Verify your machine's blade capacity specifications before installation.

Installation Notes

Blade installation should be performed by a qualified metalworking technician with the bandsaw fully powered down and locked out per OSHA lockout/tagout procedures. Confirm wheel diameter, blade guide spacing, and tension specifications on the host machine match the blade dimensions before mounting. Always wear cut-resistant gloves when handling an uncoiled bandsaw blade. Do not operate the blade above the feed rate or speed range recommended by the bandsaw manufacturer for the material being cut.
