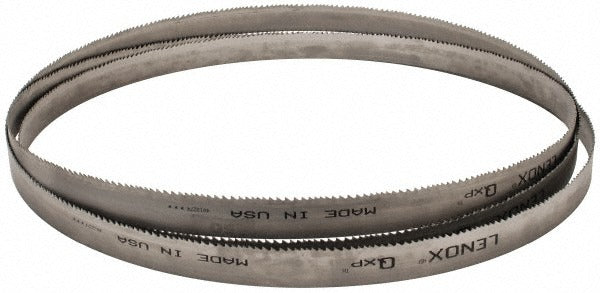

Lenox 89323QPB134040 Bandsaw Blade 13ft 3in 1in 5-8 Tpi

Product Description

The LENOX 89323QPB134040 is a welded bi-metal bandsaw blade engineered for demanding metal-cutting applications in professional shop and fabrication environments. The blade measures 13 feet 3 inches in length, 1 inch in width, and 0.035 inches in thickness, with a variable pitch of 5 to 8 TPI. The tooth material is High Speed Steel with an M42-plus material grade, delivering heat and wear resistance during high-cycle cutting. The spring steel back provides flexibility and fatigue resistance during continuous use. This blade is suited for metal fabrication shops, maintenance facilities, and production environments where consistent, accurate cuts across a range of materials are required.

This blade is designed for use on bandsaw machines accepting a 13-foot-3-inch welded blade with a 1-inch width. The variable 5 to 8 TPI pitch pattern reduces vibration and harmonic noise during the cut, making it well-suited for structural sections, solid bar, and tubing. The Vari-Raker tooth set and positive rake angle improve chip clearance and cutting efficiency across a broad range of material cross-sections. It is appropriate for production cutting in both light manufacturing and heavy fabrication settings.

Key Features

• Bi-metal construction with M42-plus High Speed Steel teeth for extended blade life
• Variable pitch 5 to 8 TPI reduces vibration and improves surface finish on varied cross-sections
• Spring steel back provides fatigue resistance and flexibility during continuous operation
• Vari-Raker tooth set with positive rake angle improves chip ejection and cutting efficiency
• 0.058-inch kerf width for precise, efficient material removal
• Compatible with a wide range of materials including stainless steel, titanium, alloy steel, carbon steel, aluminum, and mold steel

Compatibility

Designed for bandsaw machines that accept a welded blade 13 feet 3 inches long and 1 inch wide. Suitable for cutting alloy steel, aluminum, non-ferrous metal, carbon steel, stainless steel, tool steel, mold steel, bearing steel, and titanium.

Installation Notes

Installation should be performed by a qualified operator following the bandsaw manufacturer's guidelines. Disconnect and lock out power to the machine before replacing the blade. Verify blade tension, tracking, and guide settings according to machine specifications before resuming operation. Wear appropriate cut-resistant gloves when handling the blade.
