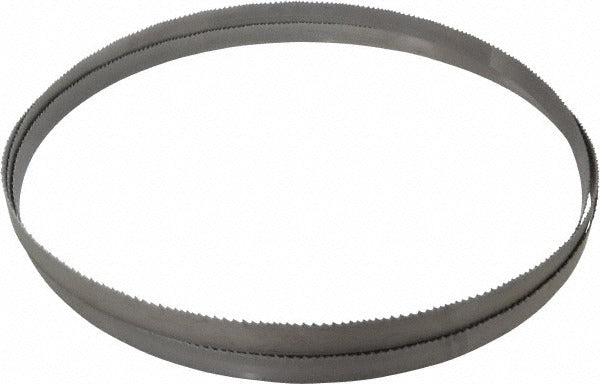

Lenox 87889CLB103315 Welded Bandsaw Blade 6-10 Tpi

Product Description

The LENOX 87889CLB103315 is a welded bi-metal bandsaw blade engineered for demanding metal-cutting applications in professional shop and fabrication environments. Measuring 10 feet 10.5 inches in length and 0.75 inches wide with a 0.035-inch blade thickness, it features a variable-pitch tooth form ranging from 6 to 10 TPI. The cutting edge combines a Vari-Raker tooth set with a milled, toothed profile to reduce vibration and improve chip clearance. The M42 high speed steel tooth material provides superior heat and wear resistance, while the spring steel back maintains consistent blade tension throughout the cut. Licensed machinists, tool and die technicians, and metal fabricators are the primary installers and users of this blade.

This blade is suited for contour-free straight cuts through a broad range of metals in industrial and commercial fabrication settings. Its variable pitch and Vari-Raker set make it effective across dissimilar cross-sections and wall thicknesses. Stated material applications include alloy steel, aluminum, non-ferrous metal, carbon steel, stainless steel, structural steel, and tool steel. It is packaged individually and sold in single-unit quantities, making it practical for replacement or stocking of specific blade sizes.

Key Features

• M42 high speed steel teeth for extended cutting life in hard and abrasive metals
• Variable pitch (6 to 10 TPI) reduces harmonic vibration and improves cut quality across varying stock thicknesses
• Vari-Raker tooth set promotes efficient chip evacuation and consistent kerf control
• Spring steel back provides flexibility and resistance to fatigue during continuous cutting cycles
• Kerf width of 0.058 inches supports dimensional accuracy in precision metal fabrication
• Welded construction delivers a consistent blade loop without mechanical joints

Compatibility

Designed as an OEM-style replacement welded bandsaw blade for horizontal and vertical metal-cutting bandsaws accepting a blade length of 10 feet 10.5 inches and a blade width of 0.75 inches.

Installation Notes

Installation should be performed by a qualified machinist or technician familiar with bandsaw blade tensioning and tracking procedures. Disconnect and lock out power to the bandsaw before removing the old blade or mounting the new one. Verify that the machine's blade guides and thrust bearings are adjusted to the 0.75-inch blade width before tensioning. Always confirm blade tracking and tension per the bandsaw manufacturer's specifications before resuming operation.
