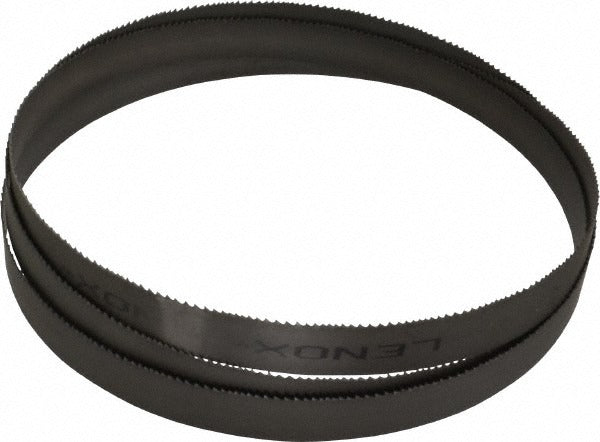

Lenox 87875CLB82690 Welded Bandsaw Blade 6-10 Tpi

Product Description

The LENOX 87875CLB82690 is a welded bi-metal bandsaw blade built for demanding metal-cutting applications in professional fabrication and maintenance environments. Measuring 8 feet 10 inches in length and 1 inch in width with a 0.035-inch thickness, this blade fits a wide range of vertical and horizontal bandsaws. The M42 high-speed steel tooth tips are electron-beam welded to a spring steel back, delivering heat resistance and edge retention under continuous cutting loads. The variable 6 to 10 TPI pitch pattern reduces harmonic vibration and improves chip evacuation, making it well suited for cutting variable cross-sections and interrupted cuts.

This blade is designed for professional metalworking applications including structural fabrication shops, machine shops, and maintenance-and-repair operations. The Vari-Raker tooth set and variable pitch pattern perform across a broad range of workpiece materials and cross-sections without requiring a blade change. It is sold individually and is appropriate for use by millwrights, pipefitters, ironworkers, and industrial maintenance technicians who require consistent, repeatable cuts in metal stock.

Key Features

• M42 high-speed steel teeth bonded to a spring steel back for extended blade life
• Variable 6 to 10 TPI pitch reduces vibration and noise during the cut
• Vari-Raker tooth set promotes aggressive chip clearance and smooth finish
• 0.058-inch kerf width minimizes material loss per cut
• Rated for alloy steel, carbon steel, stainless steel, tool steel, structural steel, aluminum, and other non-ferrous metals
• LENOX Classic series construction for consistent weld quality and blade geometry

Compatibility

Designed as an OEM-style replacement or direct-fit blade for bandsaws accepting a 8 foot 10 inch by 1 inch welded blade. Compatible material applications include alloy steel, aluminum, non-ferrous metal, carbon steel, stainless steel, structural steel, and tool steel as specified by the manufacturer.

Installation Notes

Bandsaw blade installation should be performed by a qualified technician with the machine fully de-energized and locked out per OSHA lockout-tagout procedures. Verify blade tension and tracking per the saw manufacturer specifications before resuming operation. Always wear cut-resistant gloves when handling an uncoiled or unpackaged bandsaw blade. Confirm wheel diameter and blade width capacity of the host machine before mounting to ensure proper fit and safe operation.
