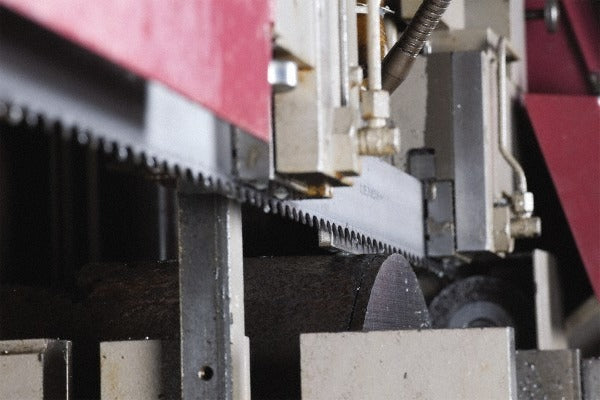

Lenox 82634GTB123660 Bandsaw Blade 12 Ft 3-4 Tpi Bi-metal

Product Description

The LENOX 82634GTB123660 is a welded bi-metal bandsaw blade engineered for demanding metal-cutting applications in industrial and fabrication environments. Part of the Contestor GT series, it measures 12 feet in length and 1-1/4 inches wide with a 0.042-inch thickness. The blade features an M42 high speed steel tooth with a positive rake angle, Vari-Set tooth set, and a variable pitch pattern ranging from 3 to 4 TPI, which reduces vibration and harmonic chatter during cuts. A spring steel back provides flexibility and fatigue resistance through extended cutting cycles. Licensed metalworking professionals and fabrication shops rely on this blade for high-production bandsaws.

This blade is suited for horizontal and vertical bandsaw applications cutting a wide range of materials including alloy steel, carbon steel, stainless steel, tool steel, mold steel, bearing steel, nickel alloy, titanium, aluminum, and other non-ferrous metals. The variable pitch geometry makes it particularly effective when cutting interrupted cuts, bundles, or varying cross-sections where a fixed-pitch blade would introduce resonance or uneven feed pressure. It is appropriate for both production shops and maintenance facilities running standard 12-foot bandsaw frame sizes.

Key Features

• Contestor GT series bi-metal construction with M42 high speed steel teeth for extended blade life on hard and tough alloys
• Variable pitch 3 to 4 TPI with Vari-Set tooth set reduces vibration and improves surface finish
• Positive rake angle promotes aggressive, efficient chip removal on metals
• Spring steel back resists fatigue and flex cracking through long production runs
• Ground, toothed, variable cutting edge style for consistent kerf geometry
• 0.0700-inch kerf width provides predictable material loss for precision work

Compatibility

Designed as an OEM-style replacement or direct-fit welded blade for horizontal and vertical bandsaws accepting a 12-foot by 1-1/4-inch blade in bi-metal configuration. Confirm your machine's blade length, width, and tooth pitch requirements before installation.

Installation Notes

Bandsaw blade installation should be performed by a qualified metalworking technician or maintenance professional. Power down and lockout/tagout the bandsaw per OSHA and facility safety procedures before removing or installing any blade. Wear cut-resistant gloves when handling the coiled blade, as teeth are sharp and the blade can spring open unexpectedly. Verify blade tension, guide bearing clearance, and blade tracking according to the saw manufacturer's specifications after installation before resuming production cuts.
