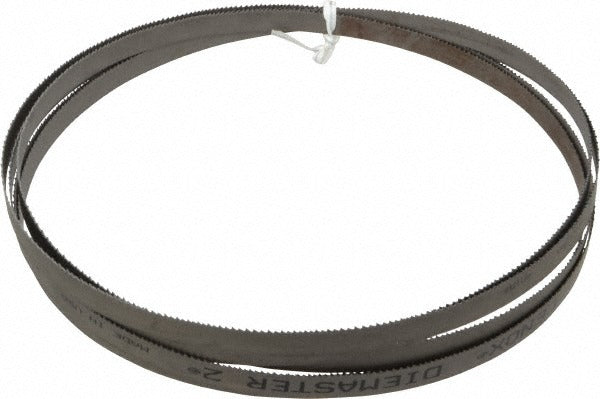

Lenox 82340D2B123785 Welded Bandsaw Blade 10-14 Tpi

Product Description

The LENOX 82340D2B123785 is a welded bi-metal bandsaw blade designed for continuous cutting in metal-cutting bandsaws. It measures 149 inches long and 1/2 inch wide with a 0.025 inch thickness and a variable pitch of 10 to 14 teeth per inch (TPI). The tooth material is M42 High Speed Steel with a Vari-Raker tooth set, providing consistent chip clearance across a range of material thicknesses. The spring steel back provides flexibility and fatigue resistance during extended use. This blade is intended for professional metalworking shops, maintenance technicians, and fabricators who need reliable performance cutting ferrous and non-ferrous stock.

This blade is suited for both straight and contour cutting applications in production and maintenance environments. The variable pitch tooth form reduces vibration and noise, making it effective on varying cross-sections such as tubing, solid bar, and structural profiles. Compatible material applications include alloy steel, carbon steel, stainless steel, tool steel, structural steel, aluminum, and other non-ferrous metals. It also supports wood cutting. The Classic series designation places this blade in a standard OEM-compatible format used across a wide range of horizontal and vertical bandsaw frames that accept welded loop blades in this length and width.

Key Features

• Bi-metal construction with M42 High Speed Steel teeth for extended cutting life on hard materials
• Variable pitch of 10 to 14 TPI with Vari-Raker tooth set reduces vibration and improves chip evacuation
• Spring steel back provides flexibility and resistance to blade fatigue
• Contour cutting capable for curved and irregular profiles
• 0.0430 inch kerf width for efficient material removal with minimal waste
• Supports a broad range of materials including stainless steel, tool steel, aluminum, and wood

Compatibility

Designed as a welded loop replacement bandsaw blade for bandsaws accepting a 149 inch blade length and 1/2 inch blade width. Suitable for cutting alloy steel, carbon steel, stainless steel, tool steel, structural steel, aluminum, non-ferrous metals, and wood.

Installation Notes

Bandsaw blade replacement should be performed by a qualified technician with the saw fully powered down and unplugged or locked out per OSHA lockout/tagout procedures. Verify blade tension, guide bearing alignment, and wheel tracking before resuming operation. Wear cut-resistant gloves when handling uncoiled or unpackaged blades. Confirm the saw frame accepts the 149 inch loop length and 1/2 inch width before installation.
