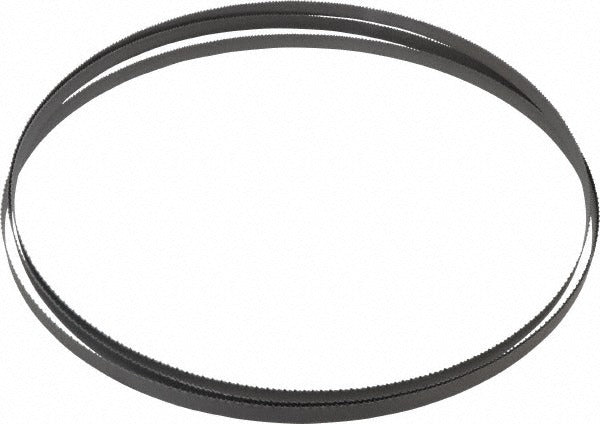

Lenox 80252D2B103175 Welded Bandsaw Blade 10-14 Tpi

Product Description

The LENOX 80252D2B103175 is a welded bi-metal bandsaw blade built for continuous cutting in metal fabrication and general industrial applications. Measuring 125 inches long and 0.5 inches wide with a 0.025-inch thickness, this blade runs on horizontal and vertical bandsaws used in shop and field cutting environments. The M42 high speed steel tooth tip bonded to a spring steel back delivers durability across a broad range of workpiece hardness levels. The variable 10 to 14 TPI pitch reduces harmonic vibration during the cut, which extends blade life and produces a cleaner kerf. A 0.043-inch kerf width balances material removal rate with cut quality.

This blade is suited for cutting alloy steel, carbon steel, stainless steel, structural steel, tool steel, aluminum, non-ferrous metals, and wood. The Vari-Raker tooth set pattern supports contour cutting as well as straight cuts, making it a practical single-blade option when a shop handles varied stock profiles and material types. The Classic series designation indicates a standard-production weld and geometry, appropriate for production cutting environments where consistent results and repeatable blade performance are required. Installation is handled by professional machinists, maintenance technicians, or fabricators.

Key Features

• Bi-metal construction: M42 high speed steel teeth bonded to a spring steel back for extended tooth life
• Variable 10 to 14 TPI pitch reduces vibration and improves cut finish across varying material thicknesses
• Vari-Raker tooth set supports both straight and contour cutting
• 0.043-inch kerf width minimizes material waste during cuts
• Compatible material applications include stainless steel, alloy steel, aluminum, carbon steel, structural steel, tool steel, and wood
• Welded blade loop design for use on standard bandsaw machines

Compatibility

Designed as an OEM-style replacement or direct-fit welded bandsaw blade for horizontal and vertical bandsaw machines that accept a 125-inch blade loop with a 0.5-inch width and 0.025-inch gauge.

Installation Notes

Bandsaw blade installation should be performed by a qualified machinist or maintenance technician with the machine fully powered down and locked out per OSHA lockout/tagout procedures. Blade tension and tracking must be set according to the bandsaw manufacturer specifications before running the blade. Wear cut-resistant gloves when handling the coiled or looped blade. Inspect the weld joint for integrity before mounting and do not operate a blade with visible weld defects or cracks.
