Lenox 80245D2B103050 Bandsaw Blade 10 Ft 10-14 Tpi

Product Description

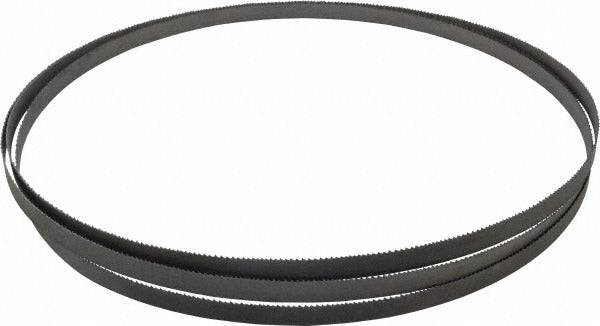

The LENOX 80245D2B103050 is a welded bi-metal bandsaw blade built for cutting a wide range of metals and other materials. The blade runs 10 feet long and 1/2 inch wide with a 0.025-inch thickness and a variable-pitch tooth form rated at 10 to 14 TPI. The cutting teeth are High Speed Steel M42 grade, set in a Vari-Raker pattern for smooth, efficient chip removal. The spring steel back provides flexibility and resistance to fatigue during continuous cutting operations. This blade is suited for metal fabrication shops, maintenance facilities, and industrial environments where a single blade must handle varied stock types and cross-sections.

This blade is designed for bandsaw machines accepting a 10-foot blade loop with a 1/2-inch width. The variable 10-to-14 TPI pitch makes it effective across multiple material types including alloy steel, carbon steel, stainless steel, structural steel, tool steel, aluminum, non-ferrous metals, and wood. Contour cutting is supported, making this blade a practical choice for curved or irregular cuts. It is commonly installed by machinists, fabricators, and maintenance technicians working in production or job-shop settings.

Key Features

• Variable-pitch tooth form (10 to 14 TPI) reduces vibration and harmonics during cutting
• M42 High Speed Steel teeth provide hardness and heat resistance for metal cutting
• Vari-Raker tooth set promotes consistent chip evacuation and extended blade life
• Spring steel back construction resists fatigue under continuous bandsaw cycling
• 0.043-inch kerf width minimizes material waste on each pass
• Supports contour cutting for curved and irregular workpiece profiles

Compatibility

Designed for bandsaws accepting a 10-foot blade loop with a 1/2-inch blade width. Verify your machine's wheel diameter, blade guide spacing, and blade tension range before installation.

Installation Notes

Bandsaw blade replacement should be performed by a qualified technician with the machine fully de-energized and locked out per OSHA lockout/tagout procedures. Wear cut-resistant gloves when handling the coiled blade. Confirm proper blade tension and tracking alignment before resuming operation. Do not exceed the bandsaw manufacturer's recommended blade speed for the material being cut.
