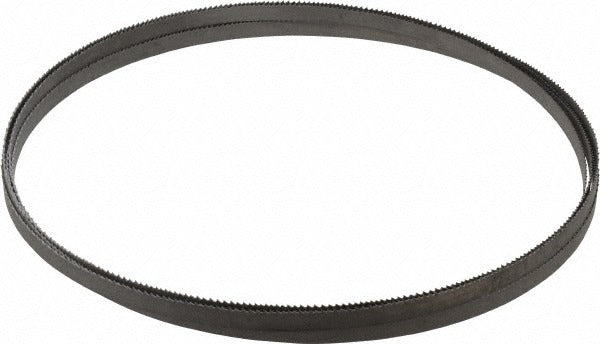

Lenox 80013D2B123810 Bandsaw Blade 10-14 Tpi Bi-metal

Product Description

The LENOX 80013D2B123810 is a welded bi-metal bandsaw blade designed for continuous contour and straight cutting on portable and stationary band saws. It measures 12 feet 6 inches in length and 0.25 inches wide, with a blade thickness of 0.025 inches. The variable-pitch tooth form runs at 10 to 14 TPI, reducing harmonic vibration and improving cut quality across a wide range of stock thicknesses. The tooth material is M42 high-speed steel, offering heat and wear resistance suited to demanding production cutting. This blade is part of the LENOX Classic series and is installed by metalworking technicians and fabricators in shop and field settings.

This blade is suited for cutting a broad range of materials including alloy steel, carbon steel, stainless steel, tool steel, structural steel, aluminum, non-ferrous metals, and wood. The variable Vari-Raker tooth set and spring steel back make it a practical choice for shops that cut mixed material types without swapping blades. Typical applications include tube and bar stock cutting, structural shape cutting, and general fabrication where a single blade must handle multiple material grades efficiently.

Key Features

• Bi-metal construction with M42 high-speed steel teeth for extended blade life on hard materials
• Variable pitch at 10 to 14 TPI reduces vibration and produces smoother cuts across varying stock thicknesses
• Vari-Raker tooth set optimizes chip clearance and cut efficiency
• Spring steel back resists fatigue and cracking under continuous band saw tension
• Contour cutting capable for curved and irregular profiles
• Compatible with a wide material range including stainless steel, aluminum, carbon steel, and wood

Compatibility

Designed as an OEM-style replacement or direct-fit welded bandsaw blade for portable and stationary band saws accepting a 12-foot 6-inch blade loop measuring 0.25 inches wide and 0.025 inches thick.

Installation Notes

Band saw blade installation should be performed by a qualified technician with the machine fully de-energized and blade guards removed per the saw manufacturer's service procedure. Verify blade tension and wheel tracking before resuming operation, and confirm the blade width is within the saw's specified capacity range. Follow applicable ANSI B11.10 machine tool safety standards for band saw operation. Inspect the welded joint for straightness and integrity before installing.
