Lenox 55743RPB103050 Bi-metal Bandsaw Blade 10 Ft

Product Description

The LENOX 55743RPB103050 is a bi-metal welded bandsaw blade engineered for demanding cutting applications in metal fabrication and industrial maintenance environments. The blade runs 10 feet long and 3/4 inch wide with a 0.035-inch body thickness and a variable pitch of 4 to 6 TPI. The back is spring steel, and the teeth are M42 high speed steel with a positive rake angle and Vari-Set tooth set. The combination of a flexible spring steel back and hard M42 tooth material gives this blade the durability needed for continuous production cutting.

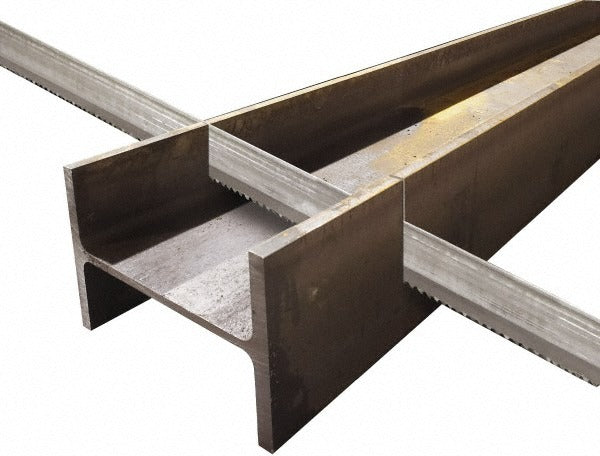

This blade is part of the LENOX RX Plus series and is intended for use in horizontal and vertical bandsaw machines in professional shop and field service environments. The variable pitch tooth form and milled toothed cutting edge make it well suited for cutting a range of metal cross sections including tube, solid bar, and structural profiles. It is typically installed by millwrights, tool room machinists, metal fabricators, and maintenance technicians working with band saw equipment.

Key Features

• Bi-metal construction with M42 high speed steel teeth for extended blade life in metal cutting
• Variable pitch 4 to 6 TPI reduces vibration and improves cut quality across varying material cross sections
• Positive rake angle promotes aggressive, efficient material removal
• Vari-Set tooth set with milled cutting edge for consistent kerf width of 0.058 inches
• Spring steel back provides flexibility and fatigue resistance during continuous operation
• Pre-welded construction for drop-in installation on compatible bandsaw machines

Compatibility

Designed as an OEM-style replacement or upgrade blade for bandsaw machines accepting a 10-foot loop blade that is 3/4 inch wide. Verify your machine's blade length and width specifications before ordering.

Installation Notes

Blade installation and tensioning should be performed by a qualified technician following the bandsaw manufacturer's service instructions. Disconnect and lock out power to the bandsaw before removing the old blade or installing the new one. Use appropriate cut-resistant gloves when handling the blade. Follow the machine manufacturer's tensioning and tracking guidelines to avoid premature blade fatigue or breakage.
