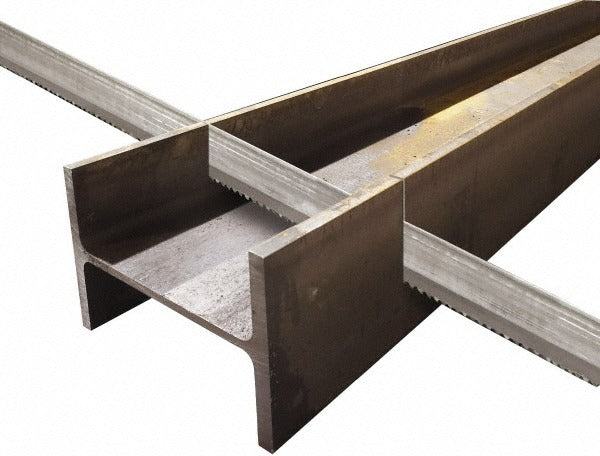

Lenox 41683RPB123835 Welded Bandsaw Blade 10-14 Tpi

Product Description

The LENOX 41683RPB123835 is a welded bi-metal bandsaw blade built for continuous cutting operations in metal fabrication, maintenance, and industrial service environments. The blade measures 12 feet 7 inches in length and 5/8 inch in width with a 0.032-inch thickness. The variable-pitch tooth configuration runs 10 to 14 teeth per inch, reducing vibration and harmonics during the cut. Tooth material is M42 high-speed steel, which provides wear resistance on harder metals and alloys. A raker tooth set promotes consistent chip clearance across a range of material thicknesses.

This blade is designed for horizontal and vertical bandsaw machines used in commercial and industrial shops. The variable 10-14 TPI pitch makes it well suited for cutting solid stock, tubing, and structural shapes where material thickness varies across the cut. It is a common replacement blade for production and job-site bandsaws requiring a 12-foot 7-inch loop. Installation and blade changes are typically performed by machinists, fabricators, or maintenance technicians. The toothed edge is a straight cutting configuration with no contour-cutting profile.

Key Features

• Bi-metal construction with M42 high-speed steel teeth for extended blade life on hard materials
• Variable pitch 10 to 14 TPI reduces vibration and chatter during the cut
• Raker tooth set promotes efficient chip evacuation
• 0.032-inch blade thickness balances beam strength and kerf width
• 5/8-inch blade width suits a wide range of standard bandsaw wheel sizes
• Welded loop construction — no mechanical joints in the cutting path

Compatibility

Designed as a replacement welded bandsaw blade for horizontal and vertical band saws accepting a 12-foot 7-inch by 5/8-inch blade loop. Confirm wheel size, blade guide spacing, and machine tension rating before installation.

Installation Notes

Blade installation and tensioning should be performed by a qualified machinist or maintenance technician following the saw manufacturer's service instructions. Disconnect and lock out power to the bandsaw before opening the wheel covers or handling the blade. Use appropriate cut-resistant gloves when uncoiling or threading the blade — the teeth are exposed along the full loop length. Verify blade tension, tracking, and guide alignment before returning the machine to service.
