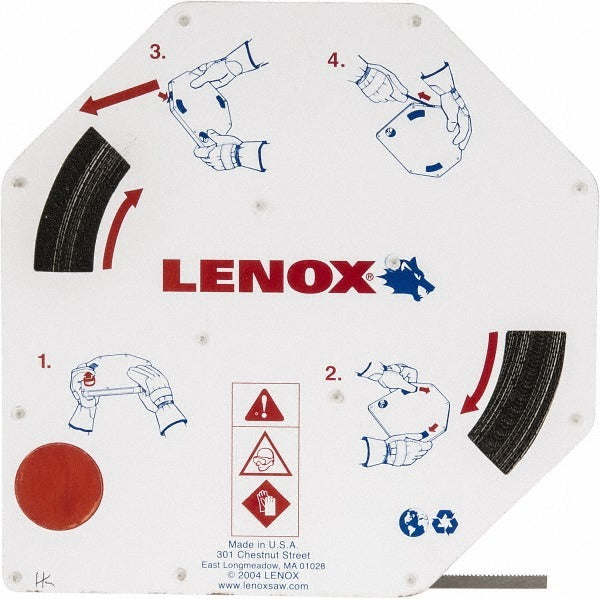

Lenox 4024NEC1464 Band Saw Blade Coil 14 Tpi 1/4 in

Product Description

The LENOX 4024NEC1464 is a band saw blade coil stock designed for continuous cutting operations in metalworking, fabrication, and general-purpose sawing applications. Supplied as a 100-foot coil, this blade measures 1/4 inch wide and 0.025 inches thick, with a 14-teeth-per-inch (TPI) constant pitch configuration. Constructed from carbon steel with a hard back, it delivers consistent rigidity throughout the cut. The raker tooth set and straight tooth form make it well suited for cutting a range of materials at controlled feed rates. Blade shops and field technicians can cut this coil stock to length for custom band saw blade fabrication.

This coil stock is used in residential and commercial trade environments wherever custom-length band saw blades are required. Typical applications include HVAC duct fabrication shops, mechanical contractors, pipe fabricators, and metalworking facilities that maintain band saw equipment on site. The 100-foot coil length provides enough stock to produce multiple blades from a single roll, reducing material handling and downtime between blade changes. Contour cutting capability makes it appropriate for curved or irregular cut profiles in addition to straight cuts.

Key Features

• 14 TPI constant pitch for consistent chip load and smooth cutting action
• Raker tooth set distributes cutting forces evenly across the blade width
• Hard back construction maintains blade rigidity and reduces flex during operation
• Carbon steel construction balances durability and ease of field fabrication
• 100-foot coil stock allows on-site blade sizing to match specific band saw wheel diameters
• Straight tooth form supports contour cutting as well as straight cuts

Compatibility

Designed as coil stock for custom band saw blade fabrication; suitable for use on band saws accepting 1/4-inch-wide blades. Verify wheel diameter and blade tension specifications of the target saw before cutting and joining.

Installation Notes

Blade fabrication and installation should be performed by qualified technicians familiar with band saw equipment and blade joining procedures. Power down and lock out the band saw before removing an existing blade or installing a new one. Use appropriate blade welding or mechanical joining equipment rated for the blade width and thickness. Follow the band saw manufacturer guidelines for blade tension and tracking adjustment after installation.
