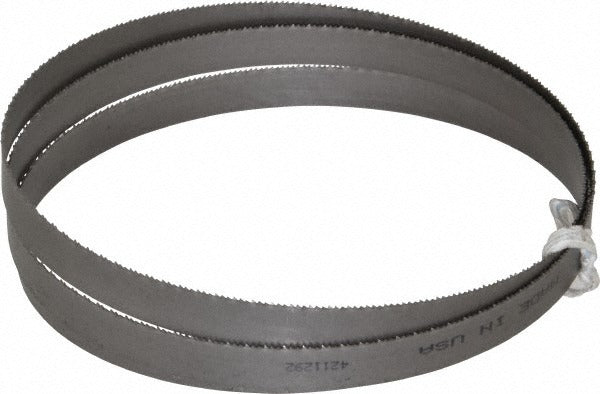

Lenox 39233D2B41325 Bi-metal Bandsaw Blade 18 Tpi

Product Description

The LENOX 39233D2B41325 is a welded bi-metal bandsaw blade built for continuous contour cutting in professional trade and industrial environments. The blade measures 52.25 inches in total length and 0.5 inches wide, with an 18 TPI constant pitch and a raker tooth set for consistent chip clearance. The M42 high-speed steel tooth tips are electron beam welded to a spring steel back, giving the blade both edge retention and flex resistance through repeated cuts. Machinists, fabricators, and maintenance technicians working with portable or benchtop band saws will find this blade suited for demanding, repetitive cutting tasks across a wide range of materials.

This blade is rated for contour cutting applications across alloy steel, carbon steel, stainless steel, structural steel, tool steel, aluminum, non-ferrous metals, and wood. The straight tooth form with no rake angle and a milled toothed edge produces clean, controlled cuts at 18 TPI. With a kerf width of 0.0430 inches and 0.025 inch blade thickness, the blade minimizes material waste during precision work. It is packaged as a single blade and intended for band saws accepting a 52.25 inch loop with a 0.5 inch blade width.

Key Features

• M42 high-speed steel teeth for extended cutting life on hard and abrasive materials
• Spring steel back for fatigue resistance and consistent tracking
• 18 TPI raker tooth set with straight form for uniform chip removal
• 0.0430 inch kerf width minimizes material loss on precision cuts
• Contour cutting capable across metals and wood
• LENOX Classic series welded construction for reliable weld integrity

Compatibility

Designed as an OEM-style replacement or direct-fit bandsaw blade for band saws accepting a 52.25 inch loop length and 0.5 inch blade width with 0.025 inch thickness.

Installation Notes

Installation should be performed by a qualified machinist or technician familiar with band saw blade changes. Power down and disconnect the saw from its power source before removing the old blade or installing the new one. Verify blade tension, guide bearing clearance, and tracking alignment per the saw manufacturer specifications before returning the machine to service. Always wear cut-resistant gloves when handling bandsaw blades.
