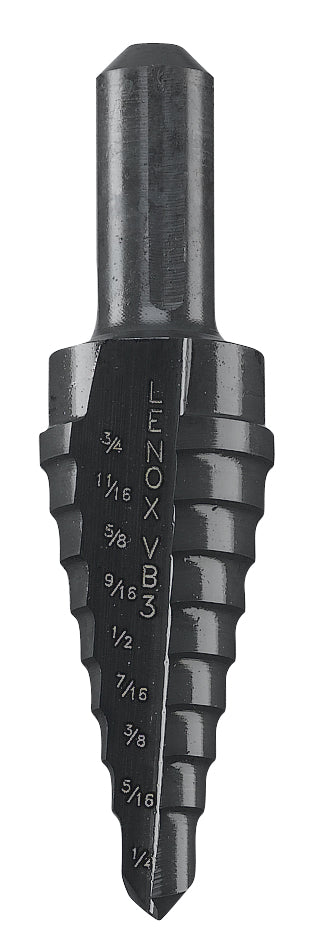

Lenox 30883VB3 Step Drill Bit, 1/4 in Dia Min Hole, 3/4 in Dia Max Hole, 9 Steps, HSS

Product Description

The Lenox® Step Drill Bit, with MPN LENOX-30883VB3, is designed for precise hole drilling. This step drill bit can create a minimum hole diameter of one-quarter inch and a maximum diameter of three-quarters of an inch. It has nine steps and a three-eighths inch shank. The design includes a split point to assist with faster penetration and a right-hand cutting direction for ease of use.

• Two flute design for smooth, burr-free holes.
• Steam oxide finish for added durability.
• Compatible with most metals and stainless steel.

Product Highlights

This drill bit features a patented design that allows for quick and clean drilling in various materials. The enhanced flute design helps reduce chip buildup during operations.

Product Information

Standard Information

• Brand: Lenox
• Manufacturing Name: Stanley Black & Decker

Technical Specifications

• Overall Length: 2-3/4 in
• Minimum Hole Diameter: 1/4 in
• Maximum Hole Diameter: 3/4 in
• Step Depth: 1/16 in
• Number of Steps: 9
• Number of Flutes: 2
• Shank Size: 3/8 in
• Point Angle: 135 deg
• Applicable Materials: Most Metals and Stainless Steel
• Cutting Direction: Right Hand
• Cutting Edge Material: HSS
• Drill Diameter Measurement System: Imperial
• Finish: Steam Oxide
• Point Type: Split
• Shank Type: 3-Flat
• Number of Hole Sizes: 9
