Lenox 30881VB1 Step Drill Bit 1/8 in Dia Min Hole 1/2 in Dia Max Hole

Product Description

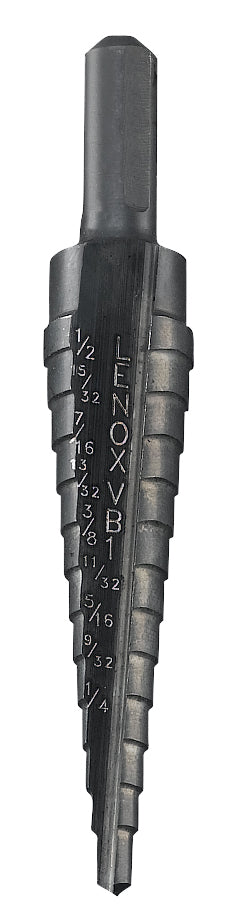

The Lenox® Vari-Bit® 30881VB1 step drill bit is designed for versatile drilling tasks. It allows for hole sizes from one-eighth inch to one-half inch, providing flexibility in various projects.

• Constructed from high-speed steel (HSS).
• Features thirteen different hole sizes.
• Designed for use with most metals and stainless steel.

Product Highlights

This step drill bit features a split point design for better penetration and reduced walking during use. The steam oxide finish enhances durability, making it suitable for frequent drilling tasks.

Product Information

Standard Information

• Brand: Lenox®
• MPN: LENOX-30881VB1

Technical Specifications

• Overall Length: 5 inches
• Minimum Hole Diameter: 1/8 inch
• Maximum Hole Diameter: 1/2 inch
• Number of Steps: 13
• Shank Size: 1/4 inch
• Number of Flutes: 2
• Cutting Edge Material: HSS
• Cutting Direction: Right Hand
• Step Depth: 1/8 inch
• Point Type: Split
• Point Angle: 135 degrees
• Finish: Steam Oxide
• Drill Diameter Measurement System: Imperial
• Applicable Materials: Most Metals and Stainless Steel
• Number of Hole Sizes: 13
