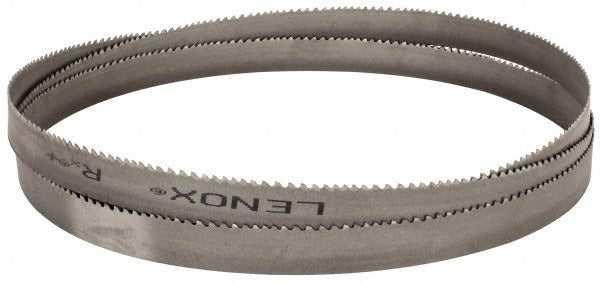

Lenox 28436RPB113355 Bandsaw Blade 11 Ft 1 in 4-6 Tpi

Product Description

The LENOX 28436RPB113355 is a welded bi-metal bandsaw blade built for demanding metal-cutting applications. It measures 11 feet in length and 1 inch in width with a 0.035-inch blade thickness and a kerf width of 0.058 inches. The cutting edge uses a variable 4 to 6 TPI tooth form with a positive rake angle and Vari-Set tooth set geometry. The blade back is spring steel, while the teeth are tipped in M42 high-speed steel — a cobalt-content grade suited for cutting harder alloys and stainless. This blade is part of the RX Plus series and is intended for professional installation on horizontal or vertical bandsaw equipment.

This blade fits bandsaws requiring an 11-foot welded loop and is well suited for production metalworking shops, fabrication facilities, and MRO operations where consistent contour-free straight cuts are needed. The variable pitch pattern reduces vibration and harmonic resonance during the cut, which helps extend blade life and improve surface finish on structural steel, tubing, and solid bar stock. It is not rated for contour cutting. Licensed machinists and metalworking tradespeople are the typical end users.

Key Features

• M42 high-speed steel teeth for cutting harder metals including alloys and stainless steel
• Variable 4 to 6 TPI pitch reduces vibration and harmonic chatter during cutting
• Vari-Set tooth set pattern improves kerf consistency and blade tracking
• Spring steel back provides flexibility and fatigue resistance over long run times
• 0.058-inch kerf width minimizes material loss per cut
• Welded loop construction for direct drop-in installation on compatible bandsaws

Compatibility

Designed as a direct-fit welded replacement blade for bandsaw machines requiring an 11-foot loop with a 1-inch blade width and 0.035-inch blade thickness. Confirm wheel diameter, blade guide spacing, and tension specifications on the host machine before installation.

Installation Notes

A licensed machinist or qualified metalworking technician should install this blade. Power down and lock out the bandsaw before removing the old blade or threading the new one through the guides. Blade tension and tracking must be set according to the bandsaw manufacturer specifications before running under load. Wear cut-resistant gloves when handling the coiled blade.
