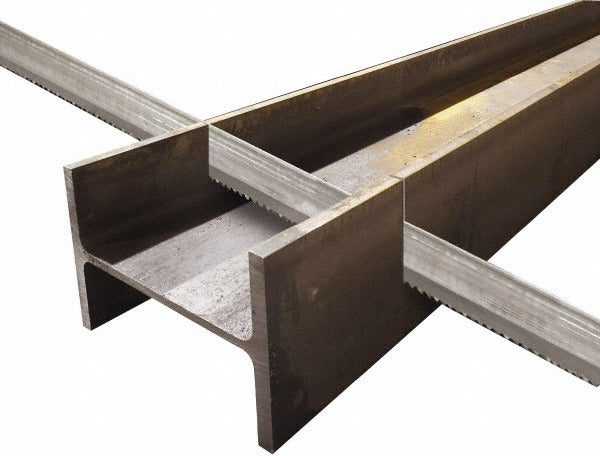

Lenox 28297RPB195920 Welded Bandsaw Blade 4 to 6 Tpi

Product Description

The LENOX 28297RPB195920 is a welded bi-metal bandsaw blade built for demanding metal-cutting applications. Measuring 19 feet 5 inches in total length and 1-1/4 inches wide, this blade runs at 0.042 inches thick and features a variable-pitch tooth pattern ranging from 4 to 6 TPI. The cutting teeth are made from M42 high speed steel, providing hardness and wear resistance suited to ferrous and non-ferrous metals. A raker tooth set promotes consistent chip clearance through the cut. This blade is intended for professional use on horizontal and vertical bandsaw machines commonly found in fabrication shops, machine shops, and industrial maintenance environments.

This bandsaw blade is designed for contour-free straight cutting operations on production bandsaws. The variable 4 to 6 TPI pitch reduces harmonic vibration and blade chatter during cuts, making it well suited for solid bar stock, structural profiles, and tubing. The M42 bi-metal construction extends blade life compared to standard carbon steel blades, particularly when cutting harder alloys or high-tensile materials. Machinists, fabricators, and maintenance technicians working with metal stock will find this blade appropriate for mid-range bandsaw machines accepting a 1-1/4 inch blade width.

Key Features

• Bi-metal construction with M42 high speed steel teeth for extended blade life on metal cutting
• Variable pitch 4 to 6 TPI reduces vibration and chatter during cuts
• Raker tooth set promotes efficient chip evacuation
• 19 feet 5 inches welded blade length ready to mount without additional joining
• 0.042 inch blade thickness suits standard production bandsaw tensioning ranges
• 1-1/4 inch blade width for straight cutting applications

Compatibility

Designed as an OEM-style replacement or direct-fit blade for production bandsaws accepting a 1-1/4 inch wide blade with a 19 feet 5 inch loop length.

Installation Notes

Installation should be performed by a qualified machinist or maintenance technician familiar with bandsaw blade mounting procedures. Disconnect and lock out power to the bandsaw before removing the old blade or mounting this blade. Verify wheel guides, blade guides, and tensioner settings are appropriate for a 1-1/4 inch wide blade before powering the machine. Handle blade coils carefully to avoid personal injury from exposed teeth.
