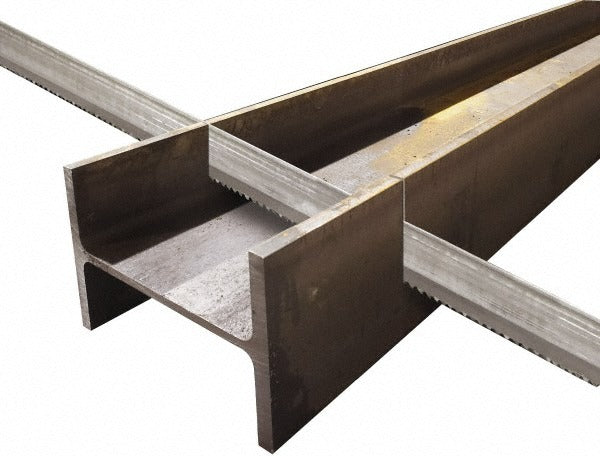

Lenox 28233RPB134240 Welded Bandsaw Blade 4-6 Tpi

Product Description

The LENOX 28233RPB134240 is a welded bi-metal bandsaw blade engineered for demanding metal-cutting applications. It measures 13 feet 11 inches in length, 1 inch in width, and 0.035 inches thick, with a variable pitch of 4 to 6 teeth per inch (TPI). The cutting teeth are high speed steel M42 grade, bonded to a spring steel back for durability and flex resistance. The Vari-Set tooth set and positive rake angle help reduce vibration, minimize blade deflection, and extend blade life during continuous cutting operations. Licensed trades and maintenance machinists working with structural steel, tubing, or solid bar stock will find this blade well matched to production-level bandsaw use.

This blade is intended for use on industrial and shop-grade bandsaws requiring a 13-foot 11-inch blade loop. The variable pitch tooth form suits a range of material cross-sections, from thin-wall tubing to solid stock, without requiring a blade change between jobs. It is sold individually and is suited for metal fabrication shops, maintenance facilities, and mechanical contractors running stationary band saws in ferrous and non-ferrous cutting applications. The bi-metal construction allows higher feed rates compared to carbon steel blades while maintaining edge integrity under heat.

Key Features

• M42 high speed steel teeth for extended cutting life on hard metals
• Variable pitch (4 to 6 TPI) reduces vibration and suits varied material cross-sections
• Spring steel back provides flex resistance and fatigue life
• Positive rake angle promotes aggressive, efficient chip removal
• Vari-Set tooth set minimizes blade wander and improves cut quality
• Welded construction provides a consistent loop with no joint weak points

Compatibility

Designed as an OEM-style replacement or direct-fit welded blade for stationary bandsaws accepting a 13-foot 11-inch bi-metal blade loop in 1-inch width.

Installation Notes

Bandsaw blade installation and tensioning should be performed by a qualified machinist or maintenance technician. Power down and lock out the bandsaw before removing the old blade or installing a new one, per OSHA lockout/tagout requirements. Verify wheel guides and blade tracking are properly set before powering the machine. Wear cut-resistant gloves when handling the coiled blade during installation.
