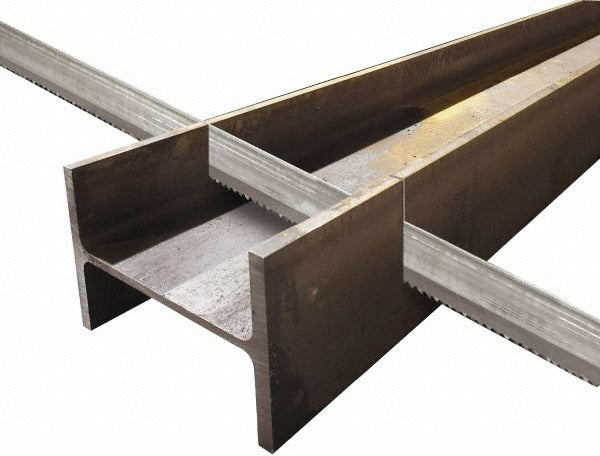

Lenox 19777RPB103085 Bandsaw Blade 3-4 Tpi Bi-metal

Product Description

The LENOX 19777RPB103085 is a welded bi-metal bandsaw blade engineered for demanding metal-cutting applications in professional shop and field environments. Part of the LENOX RX Plus series, this blade measures 10 feet 1.5 inches in total length, 1 inch wide, and 0.035 inches thick, with a variable pitch of 3 to 4 TPI. The bi-metal construction pairs a spring steel back with M42 high speed steel teeth, delivering heat resistance and edge retention through extended cutting cycles. It is installed and used by machinists, pipefitters, metal fabricators, and HVAC and plumbing trade professionals who cut structural shapes, tubing, and solid stock on horizontal or vertical band saws.

This blade is suited for cutting ferrous and non-ferrous metals in production and maintenance environments. The variable pitch tooth form and Vari-Set tooth set reduce vibration and harmonic chatter during the cut, which is particularly useful when transitioning through varying cross-sections or interrupted cuts. The positive rake angle promotes aggressive chip clearance and feed efficiency. Typical applications include cutting pipe, bar stock, and structural sections in fabrication shops, mechanical rooms, and industrial service settings.

Key Features

• Bi-metal construction: spring steel back with M42 high speed steel teeth for durability and heat resistance
• Variable pitch 3 to 4 TPI reduces vibration and harmonic noise during cuts
• Vari-Set tooth set and positive rake angle promote efficient chip evacuation
• Kerf width of 0.0600 inches provides precise material removal
• Pre-welded loop construction ready for direct installation on compatible band saw wheels
• RX Plus series designation indicates performance-grade bi-metal specification

Compatibility

Designed as a direct-fit welded bandsaw blade for band saws accepting a 1-inch-wide blade with a total loop length of 10 feet 1.5 inches. Verify wheel size, blade guide spacing, and tensioning range on the host saw before installation.

Installation Notes

Installation should be performed by a qualified machinist or tradesperson familiar with band saw blade tensioning and tracking procedures. Power down and lockout the saw completely before removing the old blade or seating the new one. Tension and track the blade according to the saw manufacturer specifications before making any cuts. Wear cut-resistant gloves when handling the blade, as the toothed edge presents a laceration hazard during handling and mounting.
