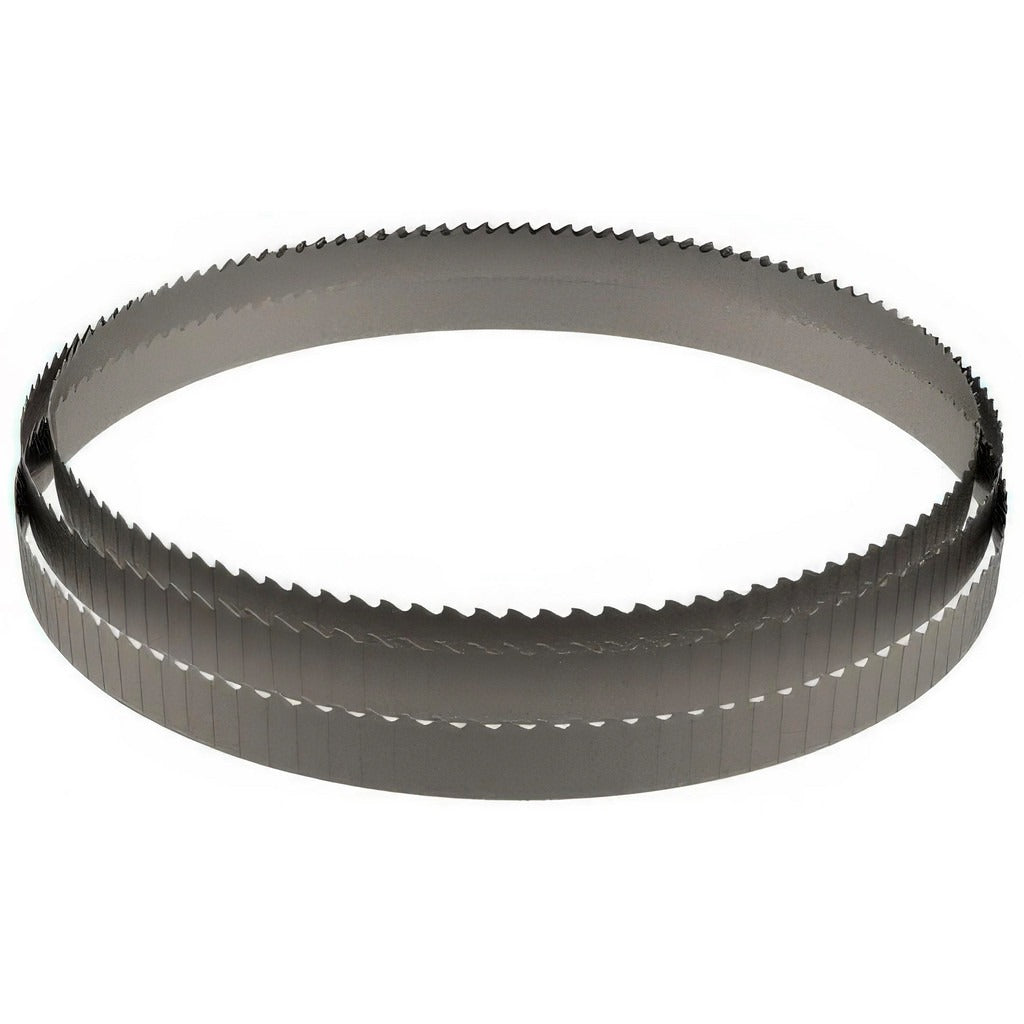

Lenox 19290RPB72360 Welded Bandsaw Blade 4-6 Tpi

Product Description

The LENOX 19290RPB72360 is a welded bi-metal bandsaw blade designed for metal-cutting bandsaws in professional shop and industrial environments. The blade runs 93 inches in total length, 3/4 inch wide, and 0.035 inches thick, with a variable 4 to 6 TPI pitch pattern. The cutting edge uses a Vari-Set tooth set with a positive rake angle and a kerf width of 0.0580 inches. The back is spring steel, and the teeth are high speed steel rated at M42 material grade, part of the RX Plus series. Licensed HVAC techs, plumbers, pipe fitters, and metal fabricators install and use blades of this type for contour-free straight cutting on metal stock.

This blade is suited for metal-cutting bandsaw applications in residential and light commercial fabrication settings. The variable 4 to 6 TPI pitch reduces harmonic vibration and blade loading when cutting a range of ferrous and non-ferrous metal section thicknesses. The M42 high speed steel tooth material supports cutting harder materials that would prematurely wear lower-grade teeth. It is a standard replacement or spare blade for bandsaws accepting a 93-inch by 3/4-inch blade specification.

Key Features

• Bi-metal construction with M42 high speed steel teeth for extended blade life on metal cutting
• Variable 4 to 6 TPI pitch with Vari-Set tooth set reduces vibration and improves cut quality
• Positive rake angle promotes aggressive feed and efficient chip removal
• Spring steel back provides flexibility and fatigue resistance during continuous cutting cycles
• Kerf width of 0.0580 inches minimizes material loss per cut
• RX Plus series designation indicating professional-grade blade specification

Compatibility

Designed as an OEM-style replacement or aftermarket welded bandsaw blade for metal-cutting bandsaws that accept a 93-inch length by 3/4-inch wide blade.

Installation Notes

Bandsaw blade replacement should be performed by a qualified technician with the machine fully de-energized and locked out per applicable OSHA lockout/tagout procedures. Verify blade tracking, blade guides, and blade tension according to the bandsaw manufacturer specifications before operating. Wear cut-resistant gloves when handling the blade. Do not operate a bandsaw with a blade that shows cracks, missing teeth, or set damage.
