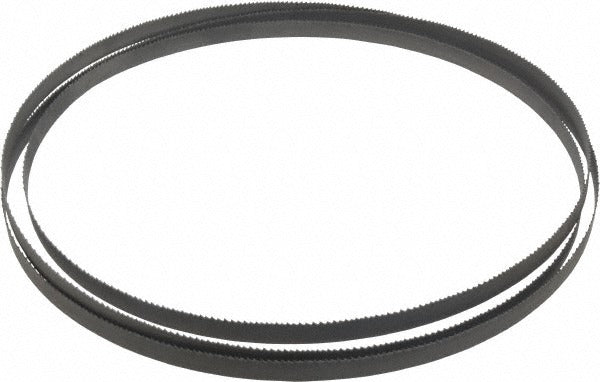

Lenox 13626D2B92770 Welded Bandsaw Blade 8-12 Tpi

Product Description

The LENOX 13626D2B92770 is a welded bi-metal bandsaw blade built for demanding cutting applications across a wide range of materials. Measuring 109 inches in length and 0.5 inches wide, it runs 0.025 inches thick with a variable-pitch tooth pattern spanning 8 to 12 TPI. The blade features M42 high speed steel teeth on a spring steel back, combining edge retention with fatigue resistance. A Vari-Raker tooth set reduces vibration and improves chip clearance. This blade is installed by HVAC technicians, plumbers, pipefitters, metalworkers, and general contractors who rely on consistent cuts in structural and specialty materials.

This blade is suited for both contour and straight cutting in residential and commercial trade environments. It handles alloy steel, carbon steel, stainless steel, structural steel, tool steel, aluminum, non-ferrous metals, and wood. The variable pitch pattern makes it effective across varying wall thicknesses and cross-sections, reducing blade chatter on interrupted cuts. It is a practical choice for jobsite and shop bandsaws where one blade must serve multiple material types.

Key Features

• Bi-metal construction with M42 high speed steel teeth for extended edge life
• Variable pitch 8 to 12 TPI reduces vibration and suits varied material thicknesses
• Vari-Raker tooth set improves chip evacuation and cut efficiency
• Spring steel back provides flexibility and fatigue resistance during continuous operation
• Contour cutting capable for curved and radius cuts
• 0.0430 inch kerf width minimizes material waste

Compatibility

Designed as a welded-loop replacement bandsaw blade for shop and portable bandsaws accepting a 109 inch blade length with a 0.5 inch width and 0.025 inch blade thickness.

Installation Notes

Installation should be performed by a qualified tradesperson familiar with bandsaw blade tensioning and tracking procedures. Power down and lockout the saw before removing the old blade or installing the new one. Verify wheel guards and blade guides are properly adjusted before resuming operation. Follow the saw manufacturer guidelines for blade tension appropriate to the blade width and material being cut.
