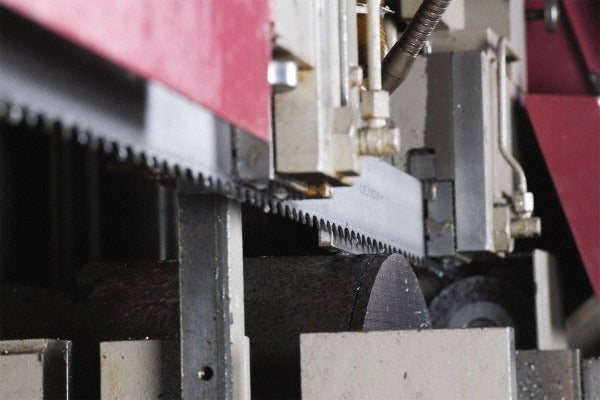

Lenox 13199GTB144419 Welded Bandsaw Blade 3-4 Tpi Bi-metal

Product Description

The LENOX 13199GTB144419 is a welded bi-metal bandsaw blade engineered for demanding metal-cutting applications. Part of the Contestor GT series, it measures 14 feet 6 inches in length and 1-1/4 inches in width, with a blade thickness of 0.042 inches and a kerf width of 0.070 inches. The M42 high speed steel tooth material is bonded to a spring steel back, giving the blade high heat resistance and long cutting life. A variable-pitch, Vari-Set tooth geometry in the 3 to 4 TPI range reduces vibration and noise while improving cut quality across a wide range of material thicknesses. This blade is installed by professional metal fabricators, maintenance machinists, and industrial MRO technicians.

This blade is suited for production and job-shop bandsaw operations cutting a broad range of metals including alloy steel, carbon steel, stainless steel, tool steel, mold steel, bearing steel, nickel alloy, titanium, aluminum, and other non-ferrous metals. The variable pitch geometry makes it especially effective when cutting structural shapes, solids, and bundled stock where consistent chip load and vibration control are critical to blade life and cut accuracy.

Key Features

• Contestor GT series bi-metal construction: M42 high speed steel teeth on a spring steel back for durability under high heat
• Variable pitch Vari-Set tooth form at 3 to 4 TPI reduces vibration and extends blade life on varied stock profiles
• Positive rake angle promotes aggressive, efficient cutting on a wide range of ferrous and non-ferrous metals
• Kerf width of 0.070 inches provides controlled material removal with minimal waste
• Welded construction ensures consistent loop integrity for continuous bandsaw use
• Ground, toothed cutting edge delivers consistent tooth geometry throughout the blade length

Compatibility

Designed for horizontal and vertical metal-cutting bandsaws that accept a 14 foot 6 inch blade loop with a 1-1/4 inch blade width. Verify your machine's wheel-to-wheel blade length specification and guide capacity before installation.

Installation Notes

Installation should be performed by a qualified machinist or maintenance technician familiar with bandsaw blade tensioning and guide adjustment procedures. Disconnect and lock out power to the bandsaw before removing the old blade or mounting the new one. Set blade tension and guide clearance according to the machine manufacturer's specifications for the blade width. Always confirm blade tracking before resuming cuts, and wear cut-resistant gloves when handling the coiled blade.
