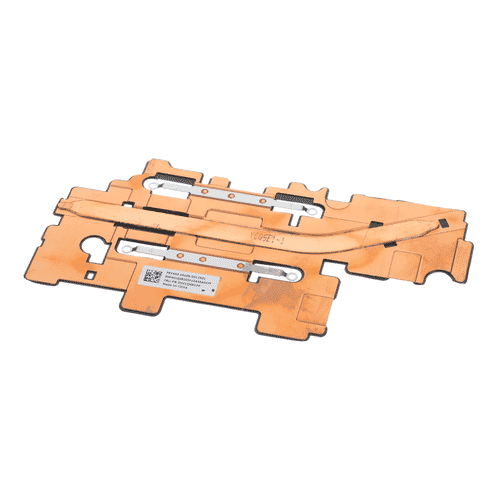

Lenovo 5h41q48105 Heatsink Thermal Assembly

Product Description

The LENOVO 5h41q48105 is a OEM heatsink and thermal assembly designed for use in Lenovo computing hardware. This component manages processor heat dissipation, drawing thermal energy away from the CPU and into the surrounding airflow path to maintain safe operating temperatures. It is a field-replaceable unit (FRU), meaning it is intended for technician-level service and swap procedures. Hardware repair technicians and depot service professionals handle this type of component during system board or cooling system replacements.

This thermal assembly is suited for installation in the specific Lenovo system it was designed for, referenced internally as the Jade-1win platform. It is used in scenarios where the original heatsink has failed, sustained physical damage, or where a depot-level repair requires a full thermal assembly replacement. Proper thermal interface material application is required during installation to ensure effective heat transfer.

Key Features

• OEM FRU heatsink designed for direct replacement in compatible Lenovo hardware
• Full thermal assembly construction for complete cooling system serviceability
• Engineered for the Jade-1win internal platform designation
• Intended for technician or depot-level installation

Compatibility

Designed as an OEM-style replacement thermal assembly for compatible Lenovo systems referencing internal platform designation Jade-1win. Verify fitment against the target system FRU list before ordering.

Installation Notes

Installation should be performed by a qualified hardware technician familiar with CPU cooling assemblies and static-sensitive components. Power down the system completely and disconnect all power sources before removing or installing this assembly. Clean the CPU die and heatsink base surfaces thoroughly and apply fresh thermal interface material before seating the assembly. Follow the system service manual torque sequence for fastener installation to ensure even contact pressure.

Technical Specifications

• Component Type: Heatsink Thermal Assembly
• Part Classification: Field Replaceable Unit (FRU)

Standard Information

• Brand: LENOVO
• Manufacturer Part Number: 5h41q48105
